Twist Coupler Plug, 1/4" FPT x M22-14MM M

Features:
• Precision machined

Specifications:
• Max. Pressure: 4,000 PSI
• Max. Flow: 10.0 GPM
• Material: Brass
• Inlet: 1/4” FPT
• Outlet: Male M22-14MM M

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

MADE IN USA
Every foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials

Features:
• Suitable for consumer and commercial applications
• Reinforcement: One layer of polyester braid
• Cover: Thermoplastic smooth finish with printed lay line
• Burst (Minimum): 2.5:1 working pressure
• Easily slides into sewer lines and pipes
• Glossy black abrasion resistant cover

Specifications:
• Inner Diameter: 1/4” ID
• Length: 100’
• Working (Maximum) Pressure: 4,400 PSI
• Burst (Minimum): 11,000 PSI
• Max. Fluid Temperature: 160º F.
• Inlet: 1/4” MPT (Swivel)
• Outlet: 1/4” MPT (Solid)
• Weight 6.5 lbs

General Pump D11006 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 1/4” x 1/4" NPT-F 5,000 PSI

Features:
• Quick disconnect design
• Hardened Steel Zinc Plated

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCP1FS
• Weight: 0.06 lb

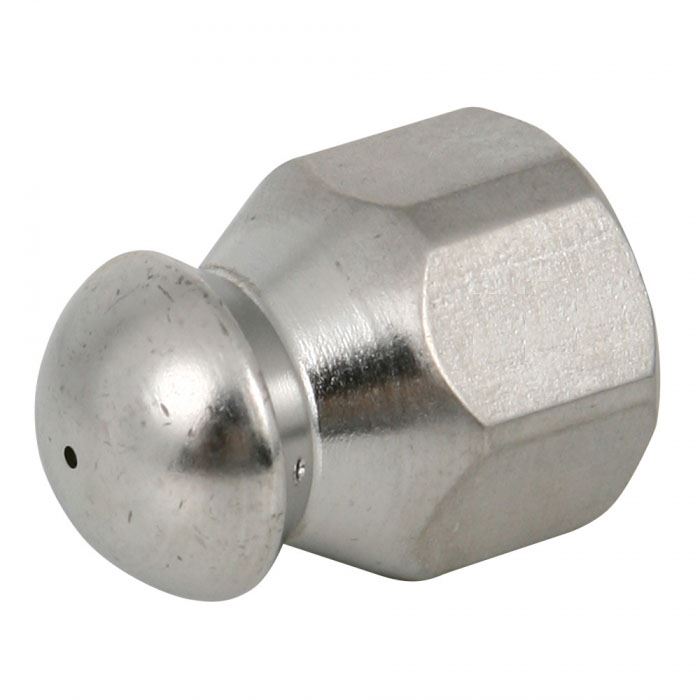

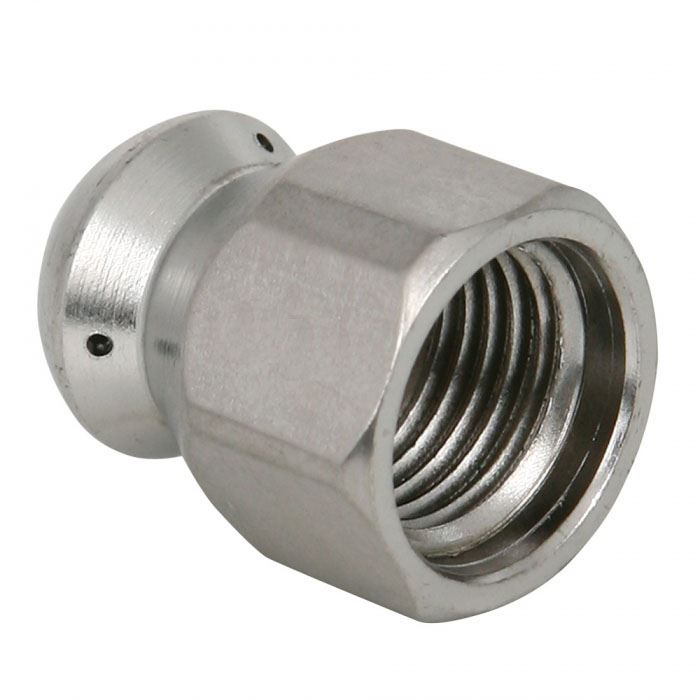

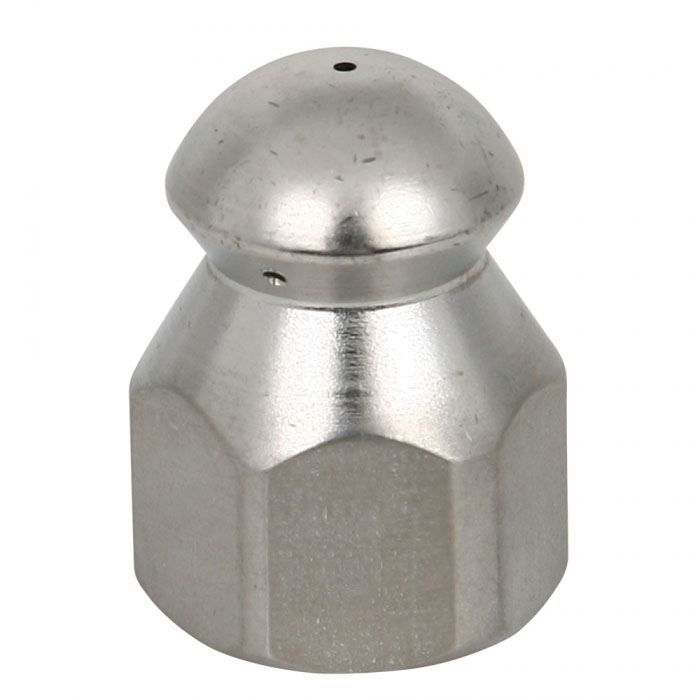

1/4” Suttner #4.0 ST-49 Milling Sewer Cleaning Nozzle. With 3 Front and 4 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 3 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• Centric jet is plugged
• 3 Lateral front jets 0.5 mm drilled
• 4 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel rear and centric front jets
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 4.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .95”
• Weight: 2.8 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
