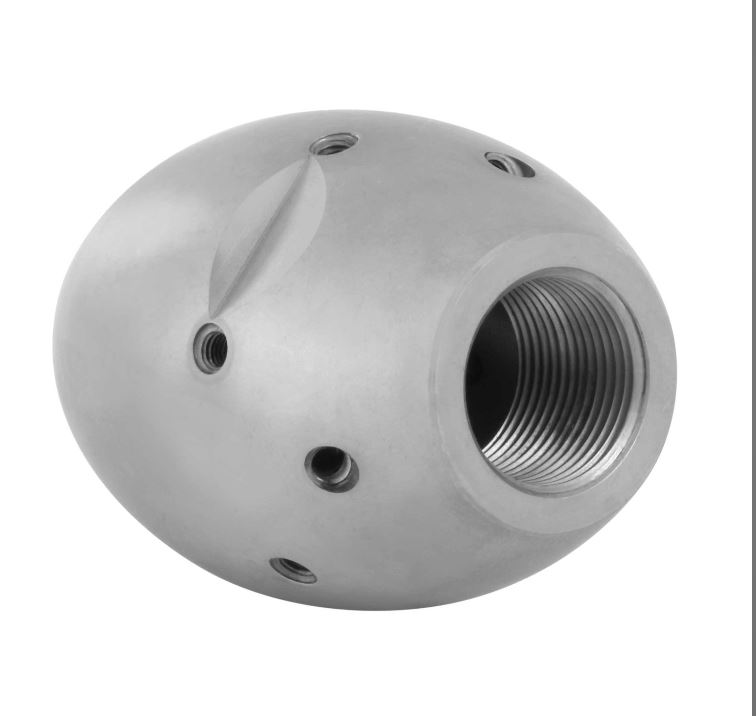

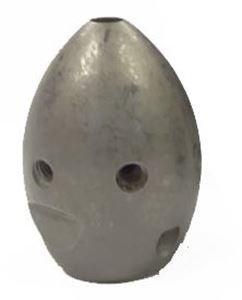

Picture of 3/8" Suttner #6.5 Warhead Radial Sewer Nozzle 1 Front 6 Side 3 Rear 7,250 PSI

3/8" Suttner #6.5 Warhead Radial Sewer Nozzle 1 Front 6 Side 3 Rear 7,250 PSI

SKU: 649110319065

Brand: Suttner America

$161.06

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


3/8” Suttner # 6.5 Warhead / Egg Radial Sewer Cleaning Nozzle. With 1 Front, 6 Side and 3 Rear jets and rated to 7,250 PSI. The ideal tool for the toughest applications of hard grease and scale that may be encrusted on the interior wall of the pipe


Features:
• High Quality, German engineered components
• Best performing and most durable design for higher efficiency
• These are light and agile used as a great all around nozzle with replaceable inserts. They include a forward jet
• The egg-type radial nozzle is wear resistant and cost competitive
• Great for sanitary applications
• With unrivaled cleaning power on heavy encrusted grease and sludge
• Hardened stainless steel body and replaceable nozzle inserts for longer life


Specifications:
• Nozzle Size: # 6.5
• Jets: 1 at 0°
• Jets: 6 at 75°
• Jets: 3 at 30°
• Material: Stainless steel
• Maximum Pressure: 7,250 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.38”
• Length: 2.17”
• Weight: 11.08 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
