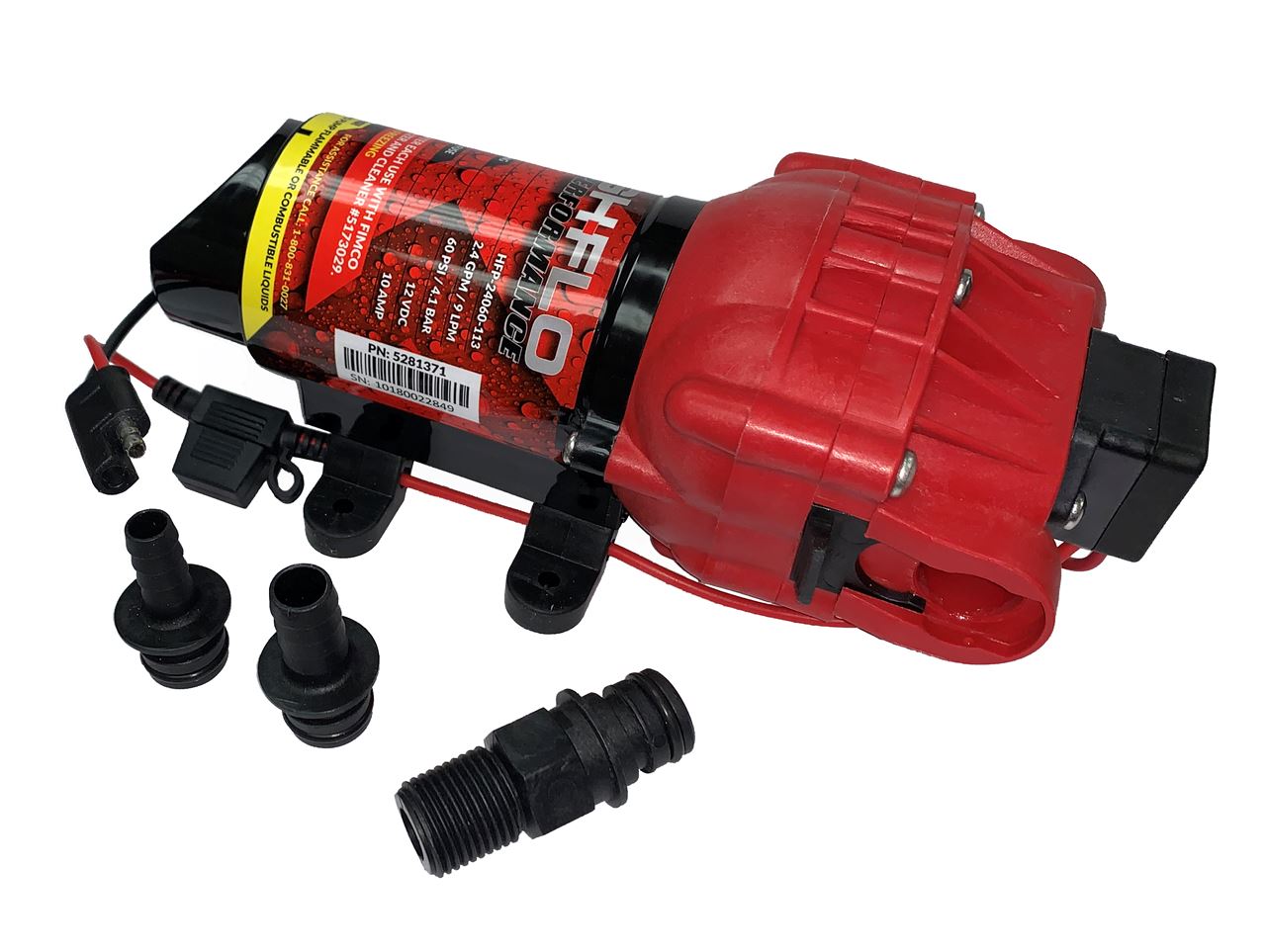

Fimco HFP-24060-113 (5281371, 5151087) HIGH-FLO High Performance 2.4 GPM 60 PSI 12 Volt Diaphragm Pump. Replacement pump for spot sprayers, liquid fertilizer units, recreational activities, wash down or liquid transfer. High-Flo has designed a new level of demand pump. Engineered to strict tolerances and elevated standards which deliver the peak of efficiency, the new High Performance line of pumps from Fimco High-Flo represent the latest in pump technology. Replaces & Upgrades Fimco Pump #5275087

Features:
• Increased Flow Rates
• Increased Motor Life
• Optimized Chamber Flow
• Improved Check Valves
• Chemical resistant elastomers
• Fan Cooled Motor
• Self priming – Up to 14‘
• Runs dry without damage
• 100% Factory tested
• Roundup® ready

Specifications:
• Automatic demand diaphragm pump
• 12 Volt DC power
• 2.4 GPM max. flow
• 60 PSI pressure switch
• Viton Valves
• Santoprene Diaphragm
• In-Line 10 AMP fuse protection – 8 AMP max draw
• Quick attach port connection with 1/2” MNPT, 3/8” Hose Barb & 1/2” Hose Barb fittings
• Fimco Box #: 5151087
• Fimco Model #: HFP-24060-113
• Fimco Pump #: 5281371
• Replaces Fimco #'s 5277981, 5275087, 5275703, 5275497, 5274517, 5275016
• 2 Year consumer limited warranty
• 90 Day commercial limited warranty
• Do not use for bleach or petroleum products
• Weight: 3.45 lbs

Fimco 5281371/5151087 Pump Breakdown
