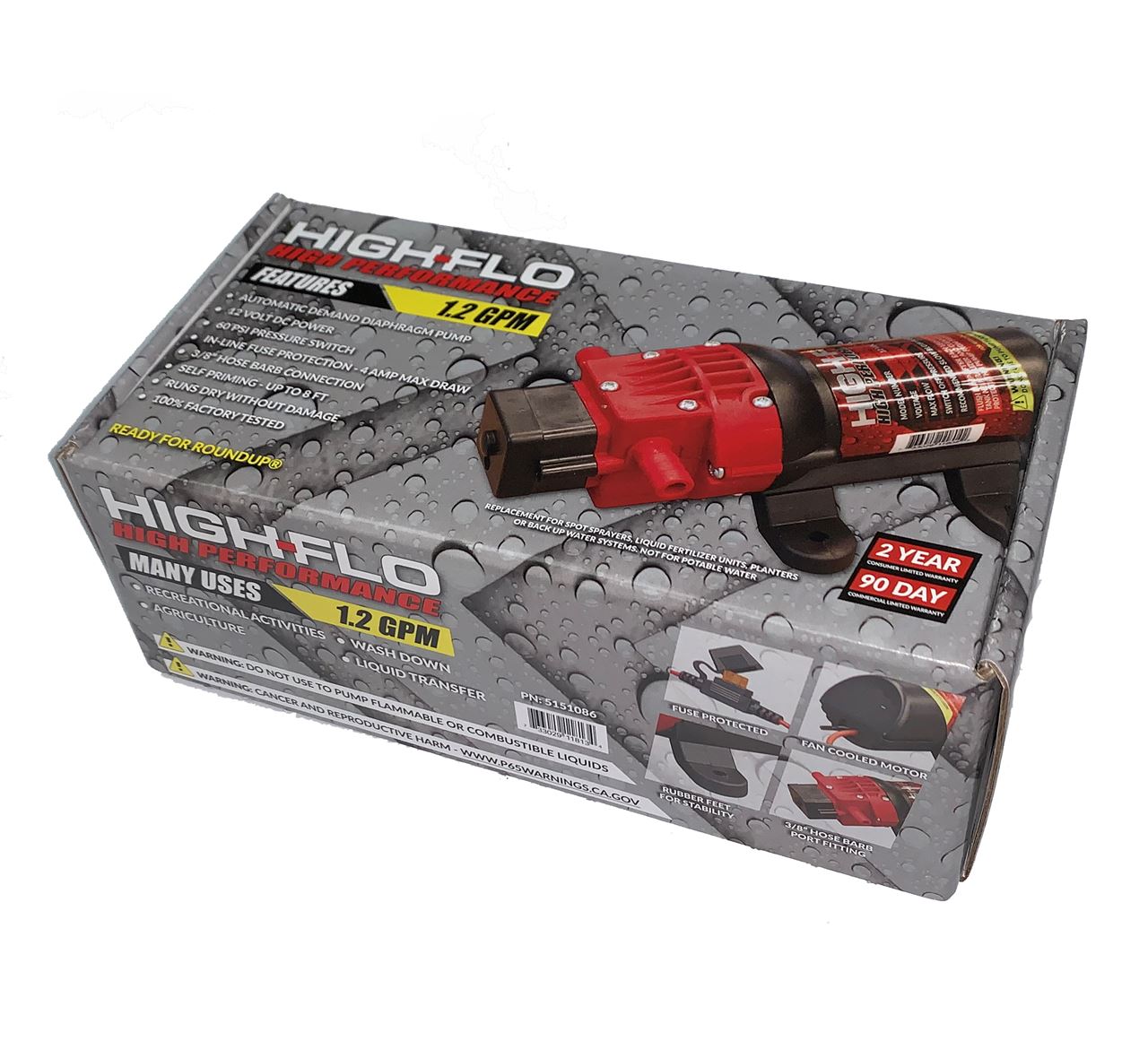

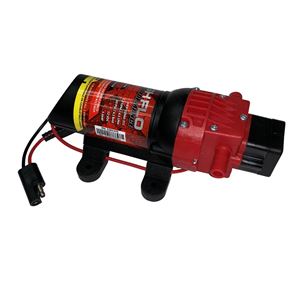

Fimco HFP-124060-111 (5281370, 5151086) HIGH-FLO High Performance 1.2 GPM 60 PSI 12 Volt Diaphragm Pump. Replacement pump for spot sprayers, liquid fertilizer units, recreational activities, wash down or liquid transfer. High-Flo has designed a new level of demand pump. Engineered to strict tolerances and elevated standards which deliver the peak of efficiency, the new High Performance line of pumps from Fimco High-Flo represent the latest in pump technology Replaces & Upgrades Fimco Pump #5275086

Features:
• Increased Flow Rates
• Increased Motor Life
• Optimized Chamber Flow
• Improved Check Valves
• Chemical resistant elastomers
• Fan Cooled Motor
• Self priming – Up to 8‘
• Runs dry without damage
• 100% Factory tested
• Roundup® ready

Specifications:
• Automatic demand diaphragm pump
• 12 Volt DC power
• 1.2 GPM max. flow
• 60 PSI pressure switch
• Viton Valves
• Santoprene Diaphragm
• In-Line 5 AMP fuse protection – 4 AMP max draw
• 3/8” Hose barb connections
• Fimco Box #: 5151086
• Fimco Model #: HFP-12060-111
• Fimco Pump #: 5281370
• Replaces Fimco #'s 5277980, 5275086, 5275702, 5275496, 5273882, 5275015
• 2 Year consumer limited warranty
• 90 Day commercial limited warranty
• Do not use for bleach or petroleum products
• Weight: 1.55 lbs

Fimco 5281370/5151086 Pump Breakdown
