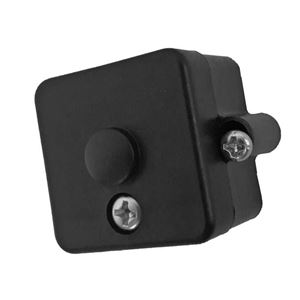

Fimco 1.2 & 4.5 GPM Pressure Switch Assembly, 60 PSI 12V HIGH-FLO Pumps
• Fimco Model #: HFP-12060-111 & HFP-45060-113 • Fimco Pump #: 5281370, 5151086, 5281372, 5151088• Replaces Fimco 5157201 - 35 PSI Models # 5275496, 5275702, 5277980, 5275086• Replaces Fimco 5157203 - 45 PSI Models # 5275498, 5275704, 5277982, 5275088
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
• Fimco Gold Series pressure switch assembly• Works on Fimco 60 PSI Models # 5275497, 5275703, 5277981, 5275087
General Pump #2.3mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.3 mm (5.0 to 8.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
