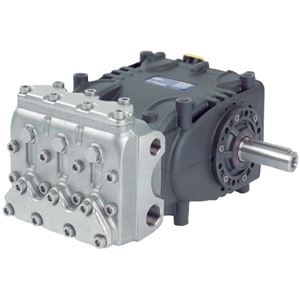

Picture of 2170 PSI, 16.1 GPM General Stainless Steel Solid Shaft Pump

2170 PSI, 16.1 GPM General Stainless Steel Solid Shaft Pump

SKU: KE28HA

Brand: General Pump

Only $3,637.13

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


General KE28HA Stainless Steel 2, 170 PSI 16.1 GPM Triplex Plunger Pump. A “New Generation” Pump


Features:
• Patent-pending, symmetrical power end design featuring top and bottom mounting holes allowing for easy left to right shaft conversion
• Low-high pressure packing design with integrated cooling system
• High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
• Splash lubrication


Materials:
• High resistance light alloy die cast aluminum crankcase
• 420 Stainless steel manifold, nickel treated
• Taper roller bearings
• Special antifriction, forged, light alloy connecting rods
• Forged alloy steel crankshaft, hardened, tempered and nitrited
• Cast iron piston guide, nickel treated
• Solid ceramic plungers
• Stainless steel valves
• Pumps are also available with 316 SS packing components. These models use prefix “KEN”


Specifications:
• Maximum Inlet Pressure: 45 PSI
• Max. GPM: 16.1
• Max. PSI: 2,170
• Max. Fluid Temp.: 140° F.
• Inlet Port Thread: 1” NPT-F
• Discharge Port Thread: 1/2” NPT-F
• Shaft Diameter: 1.181”/30 mm
• Pump Dimensions: 15.2” x 13.4” x 7.7”
• Shipping Weight: 88.0 lb.
