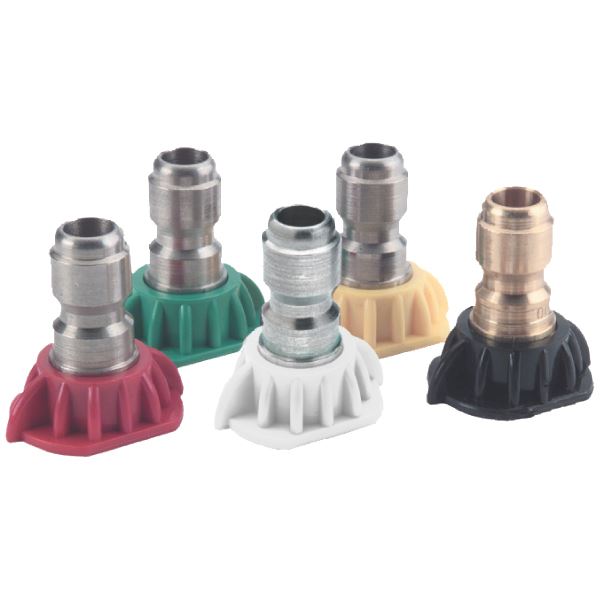

Picture of GP #5.0 Quick Connect (Q) Spray Nozzle 5-Pack

GP #5.0 Quick Connect (Q) Spray Nozzle 5-Pack

SKU: 105086

Brand: General Pump

Only $14.50

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


General Pump #5.0 Quick Connect (Q) Spray Nozzle 5-Pack


Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability


Specifications
• Nozzle Size: 5.0
• Contents: One each of a 0º, 15º, 25º, 40º and 65º #40 soap nozzle
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.50 oz


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
