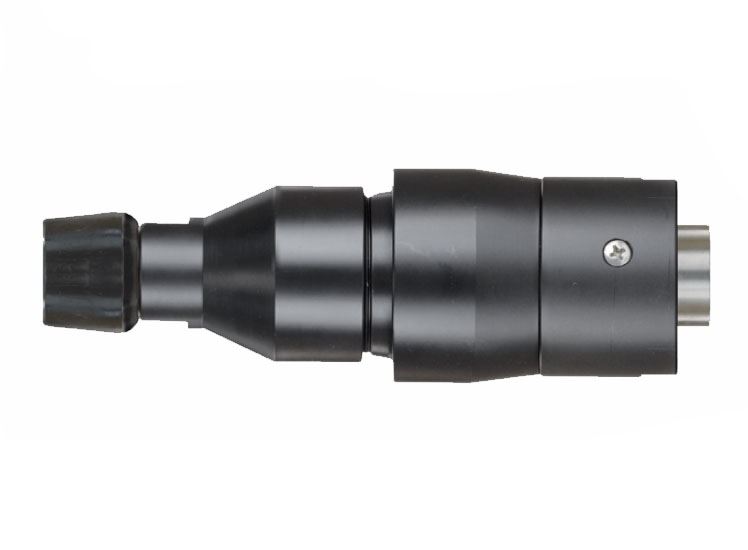

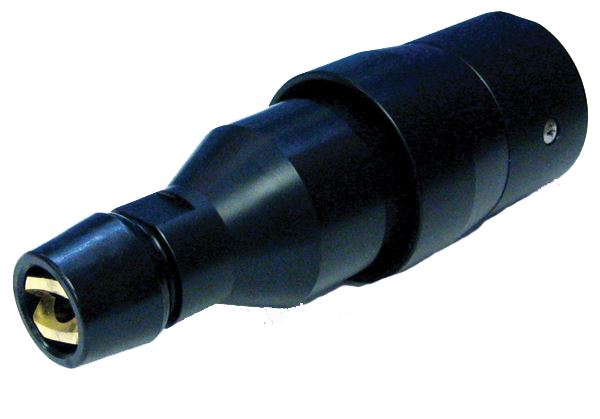

Suttner ST-76 Foam Blaster Head 3,625 PSI with #15.0 x 3 Air Injector Nozzles and 1/2" F Inlet. The foamblaster ST-76 is designed for applications in agriculture, industry, municipal cleaning and fire fighting technology. Designed for high volume applications
Features• The foam blaster ST-76 is made out of a premium combination of stainless steel and plastic• Starting with an inlet pressure of only 435 PSI the foam blaster ST-76 is able to foam mixtures of water and foam agents with a flow of 5.3 - 15.8 GPM and without the addition of compressed air • By means of exchangeable air injector nozzles it is possible to adapt the foam blaster ST-76 to the requirements such as water quantity and inlet pressure in an optimal way• Stainless steel injector nozzle• Wider spray angle• For applications 6 GPM or higher • Throws foam 40 feet• Cover large areas
ST-76 with ST-160 Chemical Injector on YouTube
Specifications • Air Injector Nozzles (3) Size: 15.0• Max Pressure: 3,625 PSI• Flow Rate: 5.3 – 15.8 GPM• Max Temp: 212° F.• Inlet: 1/2" Female• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 1.15 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Nozzle Chart
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use
Foam Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-510 Poly Chemical Spray Gun 18.5 GPM, 365 PSI, 1/2" FPT
Features• High Quality, German engineered components• Reinforced polypropylene will withstand the harshest chemicals• Gun with stainless steel V4A / AISI 316 ball being resistant to chemicals• Ideal gun for use in soft wash applications
Specifications • Max Pressure: 365 PSI• Max Flow: 18.5 GPM• Inlet: 1/2" Female NPT• Outlet: 1/2" Female NPT• UDOR # 15.0003.13• Weight: 0.30 lb
Features• High Quality, German engineered components• Stainless steel material• Extends the life of your hose• Double PTFE slide rings for easy movement• Bearing material: PTFE• Axial and radial slide bearing
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12 GPM• Max Temp: 300° F.• Inlet: 3/8" Male NPT• Outlet: 3/8" Female NPT• RPM: 30• Weight: 0.29 lb
Features• High Quality, German engineered components• The Relax-Action™, German Engineered Technology reduces trigger pulling force by 40% and holding force up to 90% compared to usual competitors spray gun• Relax-Action™ is designed for operators and applications with longer periods of cleaning time• Stainless Steel Housing• Ceramic ball together with a seal kit made out of stainless steel• Food Grade
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.25 lb
