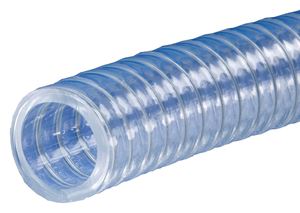

Picture of Kuri Tec® POLYWIRE® K7160 1/2" x 100' PVC Hose FDA

Kuri Tec® POLYWIRE® K7160 1/2" x 100' PVC Hose FDA

SKU: K7160-08X100

Brand: Kuriyama of America, Inc.

$116.90

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description

Kuri Tec® POLYWIRE® Series K7160 Standard Wall 1/2" x 100' PVC Food & Beverage Vacuum/Transfer Hose Hose


Construction:
• Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(18), 3A(01), NSF(13) and RoHS(16) criteria. Reinforced with helically-wound spring steel wire


Features:
• 29.9" HG vacuum rating at 70°F.
• Spiral wire reinforcement prevents kinking or collapsing . . . hose diameter will not expand under normal rated working pressures
• Crystal clear - allows visual confirmation of product flow
• Glass-smooth interior - reduces material buildup
• Electrogalvanized helical steel wire can be used for static dissipation.(CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means)
• Resistant to chemicals
• Self-extinguishing
• Non-marking
• Silicone-free
• One-piece lengths
• Phthalate Free!



Applications:
• Full vacuum lines
• Industrial vacuum pumps
• Food & beverage dispensing
• Air and water supply lines
• Pneumatic parts transfer
• Car wash applications
• Coolant lines
• Air breathing lines
• Deionized water systems


Specifications:
• Nominal ID: 1/2”
• Nominal OD: 0.750”
• Length: 100’
• Service Temp. Range: +25º F to 150º F
• Max Working Pressure @ 70º F: 100 PSI
• Min. Bend Radius @ 70º F: 2”
• Weight: 15.0 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
