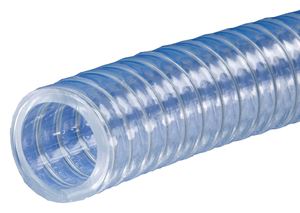

Kuri Tec® POLYWIRE® Series K7160 Standard Wall 3/8" x 100' PVC Food & Beverage Vacuum/Transfer Hose Hose

Construction:
• Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(18), 3A(01), NSF(13) and RoHS(16) criteria. Reinforced with helically-wound spring steel wire

Features:
• 29.9" HG vacuum rating at 70°F.
• Spiral wire reinforcement prevents kinking or collapsing . . . hose diameter will not expand under normal rated working pressures
• Crystal clear - allows visual confirmation of product flow
• Glass-smooth interior - reduces material buildup
• Electrogalvanized helical steel wire can be used for static dissipation.(CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means)
• Resistant to chemicals
• Self-extinguishing
• Non-marking
• Silicone-free
• One-piece lengths
• Phthalate Free!



Applications:
• Full vacuum lines
• Industrial vacuum pumps
• Food & beverage dispensing
• Air and water supply lines
• Pneumatic parts transfer
• Car wash applications
• Coolant lines
• Air breathing lines
• Deionized water systems


Specifications:
• Nominal ID: 3/8”
• Nominal OD: 0.600”
• Length: 100’
• Service Temp. Range: +25º F to 150º F
• Max Working Pressure @ 70º F: 100 PSI
• Min. Bend Radius @ 70º F: 1-1/2”
• Weight: 11.0 lbs
