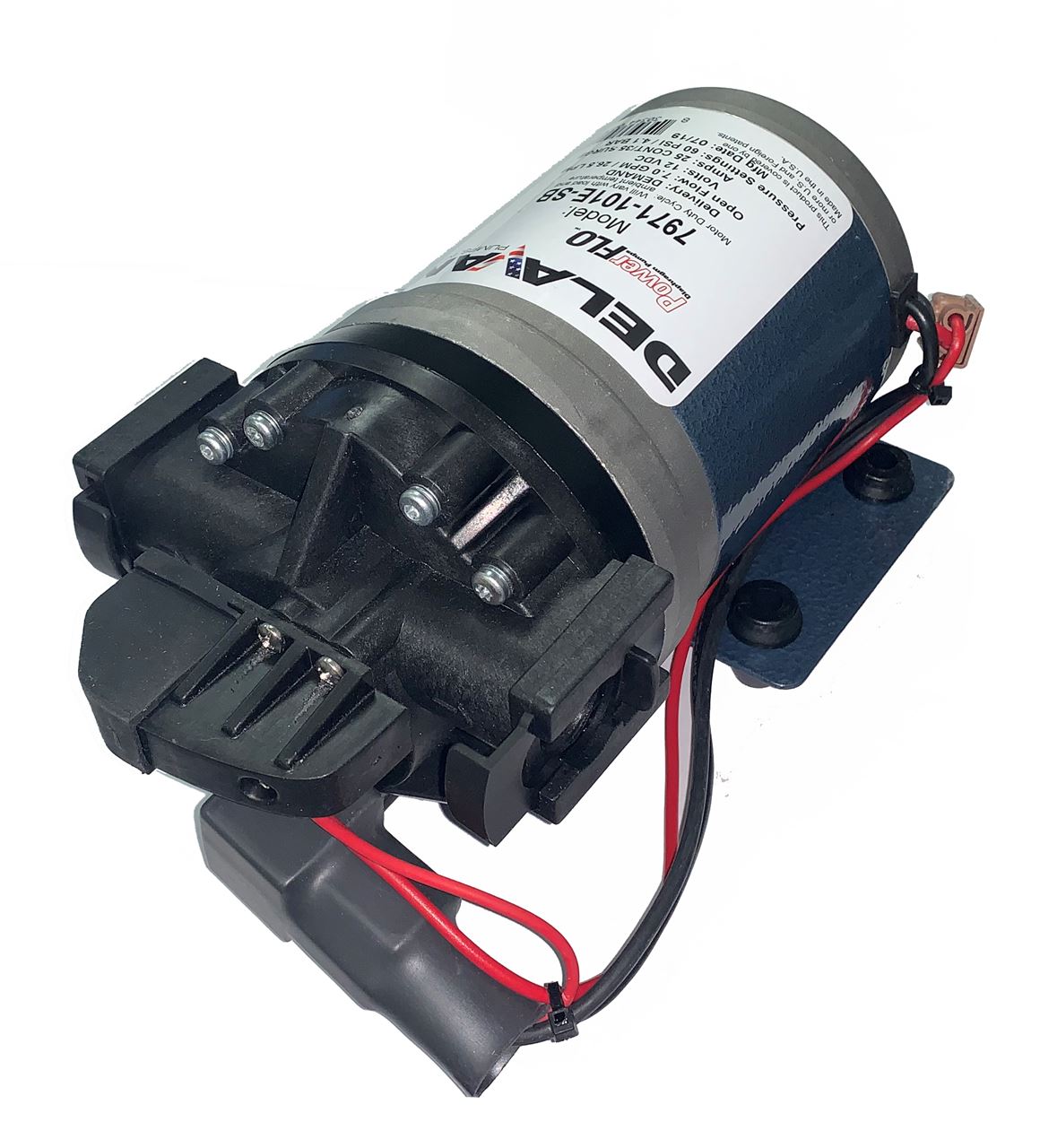

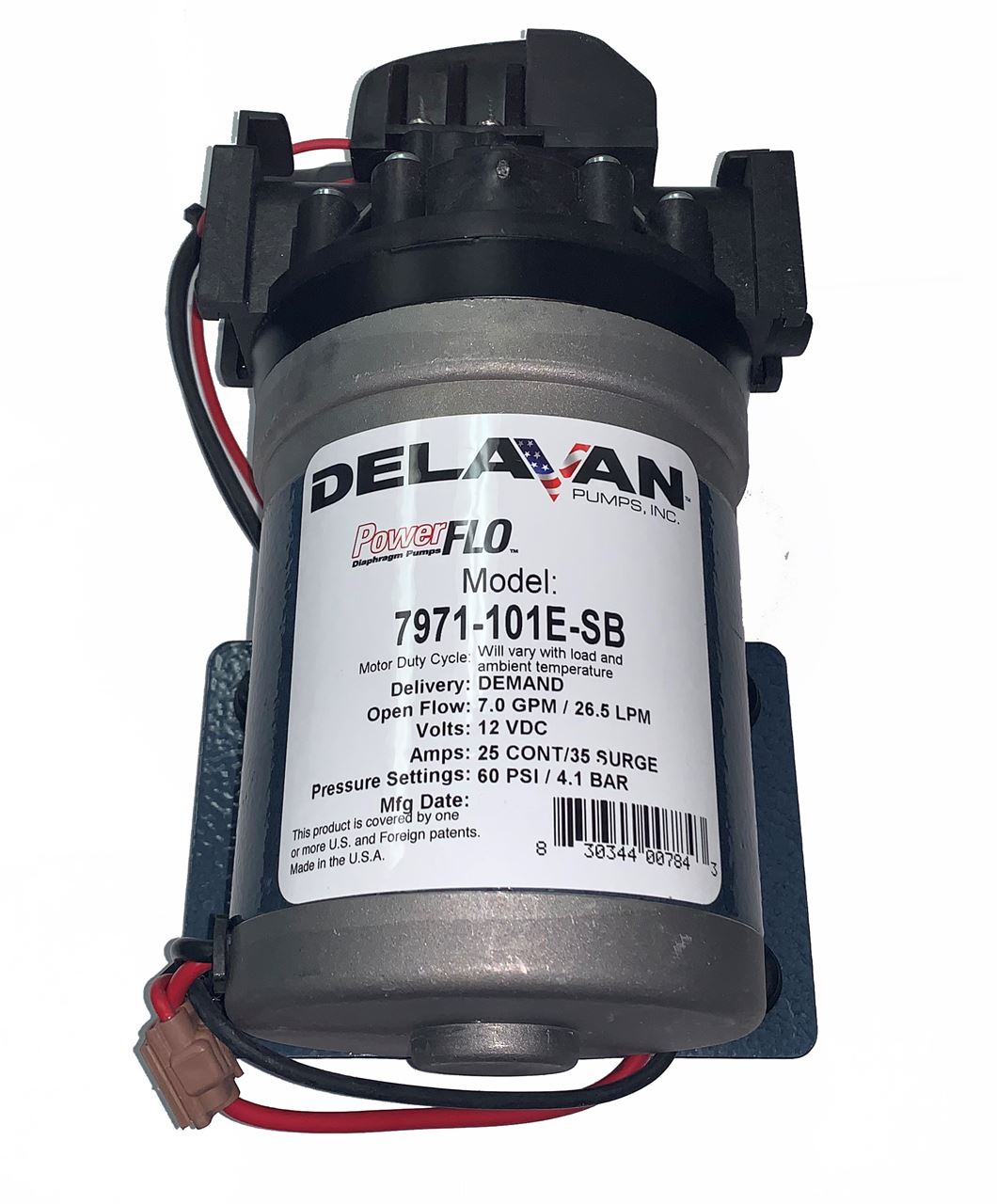

Picture of Delavan FB3 Advanced Diaphragm Pump 12V, 60PSI, 7.0GPM, DEM 3/4" Quick Attach

Delavan FB3 Advanced Diaphragm Pump 12V, 60PSI, 7.0GPM, DEM 3/4" Quick Attach

SKU: 7971-101E-SB

Brand: Delavan Ag Pumps, Inc.

$201.46

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan 7971-101E-SB PowerFLO™ Advanced FB3 Series 7.0 GPM 60 PSI Diaphragm Pump with 3/4” Quick Attach Ports. Demand Switch – Operates only when liquid flow is required.


Features:
• FB3 pumps are Delavan’s new advanced 12V smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance
• The FB3 is the most advanced, high flow 12V pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard
• The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications
• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates
• The FB3 pump uses a heavy duty demand switch system that extends the life of the pump by turning it off when not in use
• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 6” long
• Amps: 25 Continuous / 35 Surge
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene/Stainless Steel
• Fasteners: Stainless Steel


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/4” Quick Attach
• Packaging: Small box
• Weight: 9.75 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
