Picture of Delavan Diaphragm Pump 12V, 60PSI, 5.0GPM, Bypass 3/4" QA W/Heat Sink

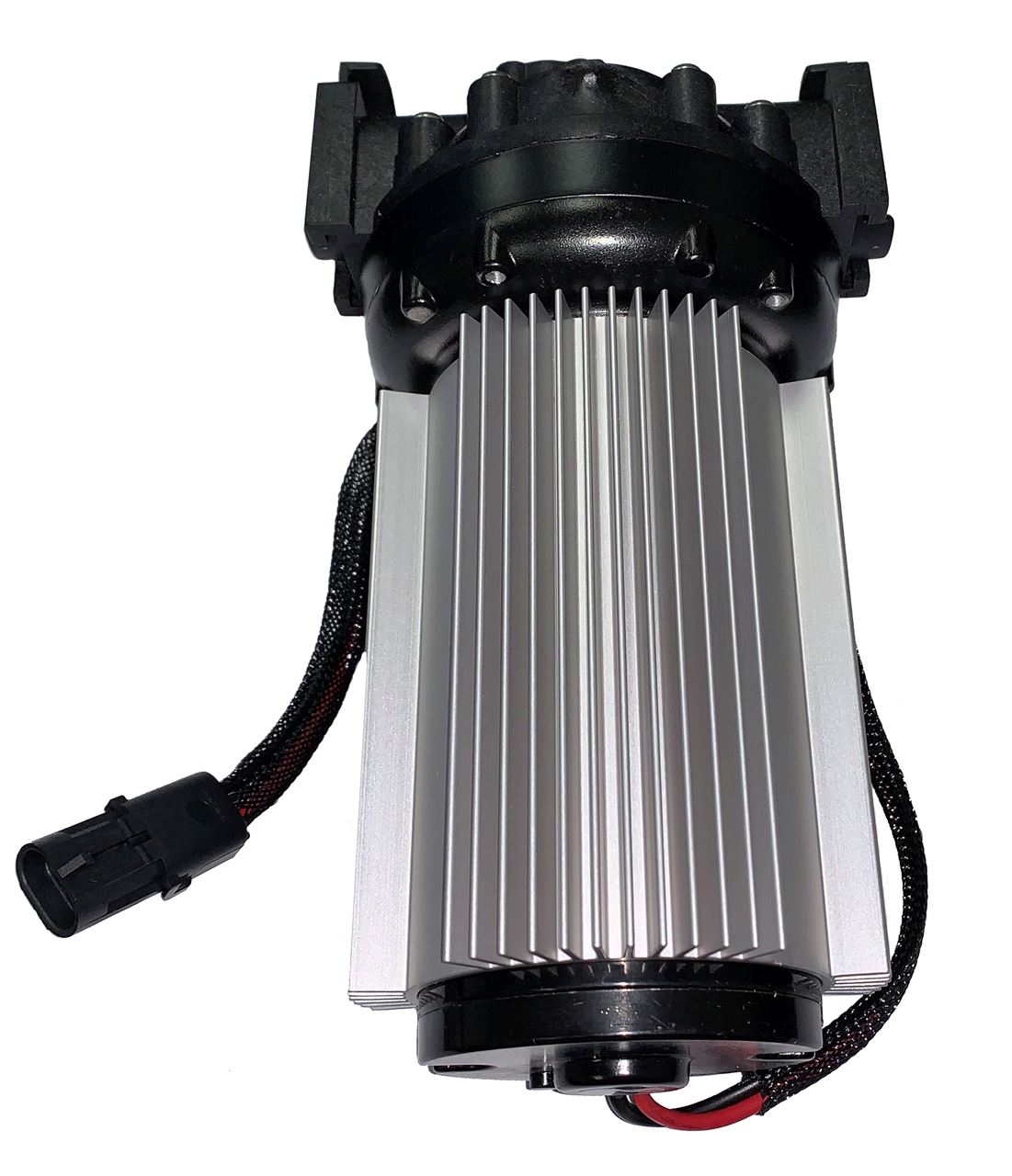

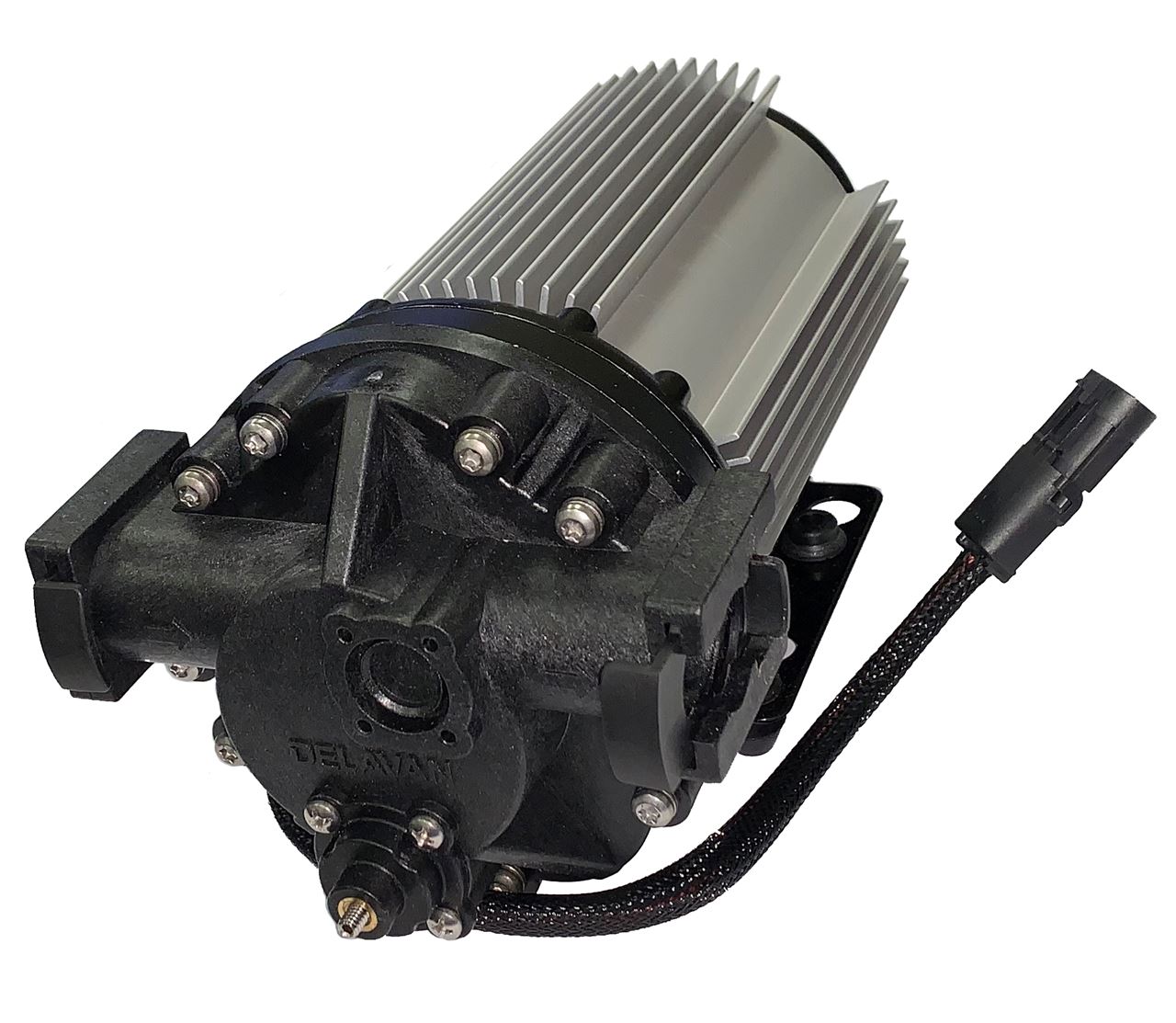

Delavan Diaphragm Pump 12V, 60PSI, 5.0GPM, Bypass 3/4" QA W/Heat Sink

SKU: 5950-111E-SB-HS

Brand: Delavan Ag Pumps, Inc.

$137.69

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan PowerFLO™ 5950 Series 5.0 GPM 60 PSI Diaphragm Pump with Heat Sink & 3/4” Quick Attach Ports. Bypass Design – Continuous operation


Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 12” long with Delphi Weatherproof Electrical 2 Pin Connector
• Amps: 20 Max
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


Heat Sink:
• Snap-fit heat sinks will reduce motor heat up to 30%
• Help to extend the available run time of the pump as well as increase motor life
• Heat sinks are made of extruded aluminum with a black anodized finish


NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act


Pump:
• Bypass Design – Continuous operation
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 5.0 GPM
• Max Pressure: 60 PSI
• Pressure Settings: 70 PSI
• Inlet/Outlet Ports: : 3/4” Quick Attach
• Weight: 7.6 lbs
