Picture of Delavan Diaphragm Pump 12 V, 60 PSI, 2.0 GPM 3/8" FNPT W/On-Off Switch

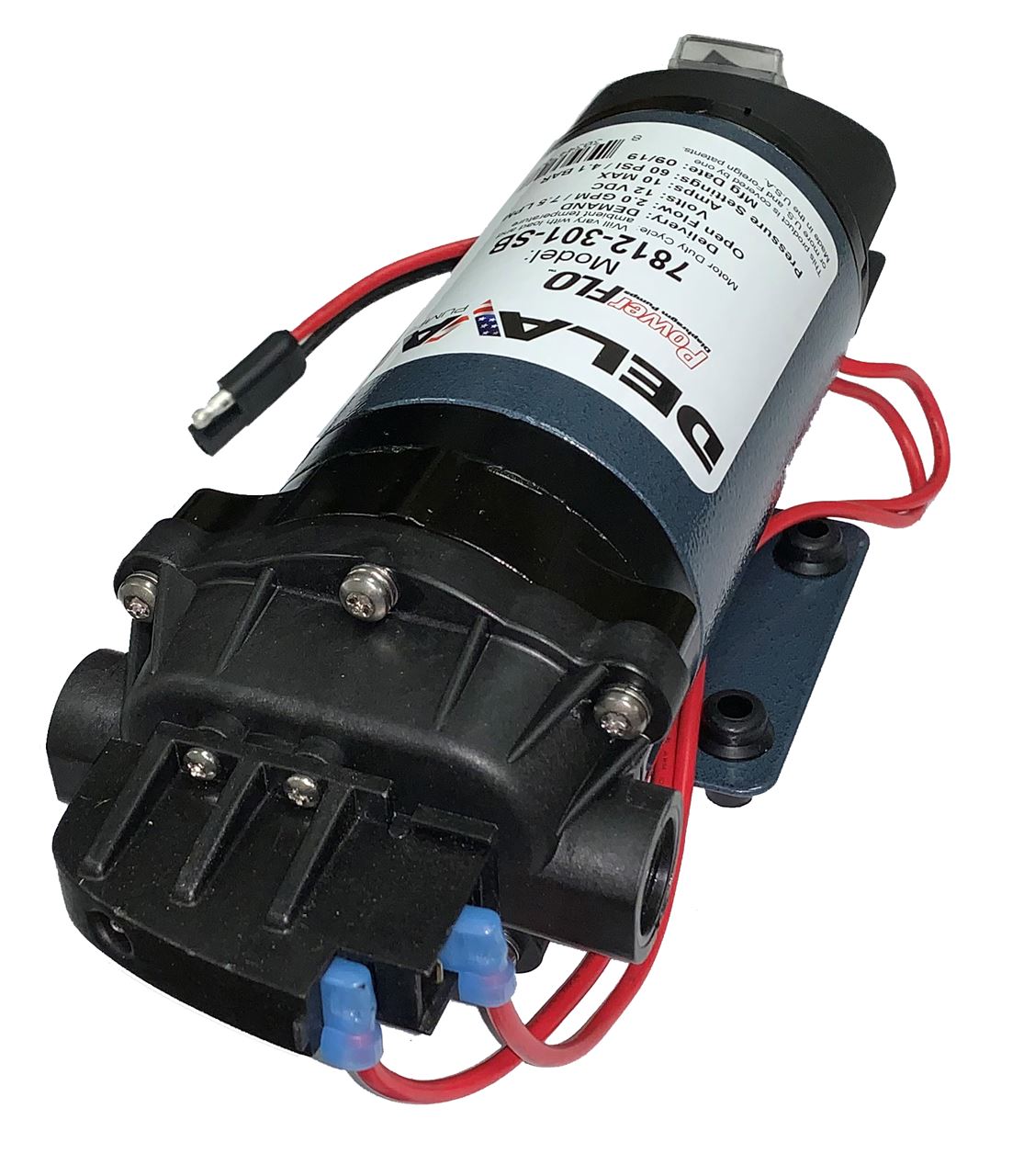

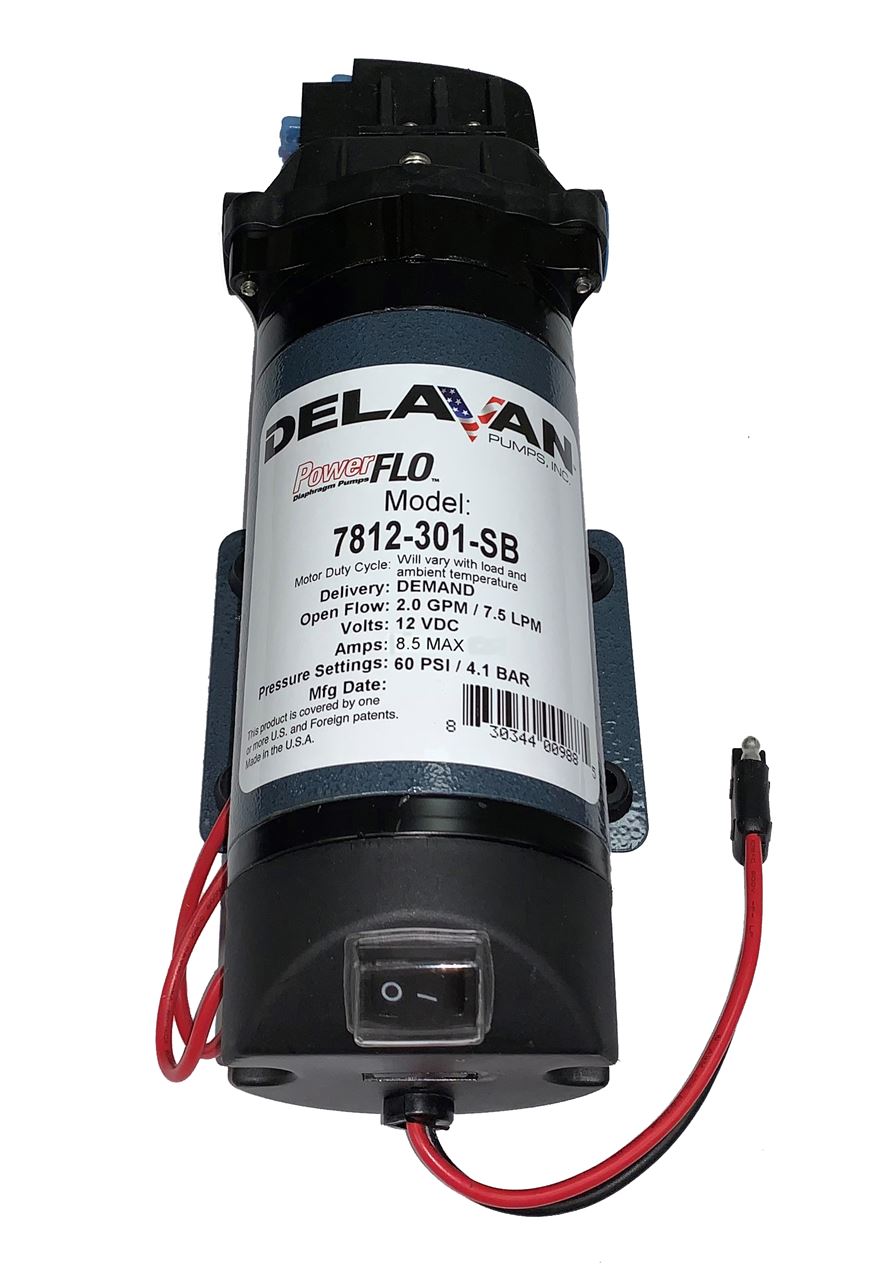

Delavan Diaphragm Pump 12 V, 60 PSI, 2.0 GPM 3/8" FNPT W/On-Off Switch

SKU: 7812-301-SB

Brand: Delavan Fluid Power

$82.97

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan PowerFLO™ 7812 Series 2.0 GPM 60 PSI Diaphragm Pump with On/Off Switch 3/8” FNPT Ports. Demand Switch – Operates only when liquid flow is required


Features:
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• On/Off Switch
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 8.5
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 2.0 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/8” FNPT
• Packaging: Small box
• Weight: 5.6 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
