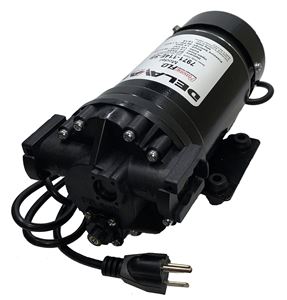

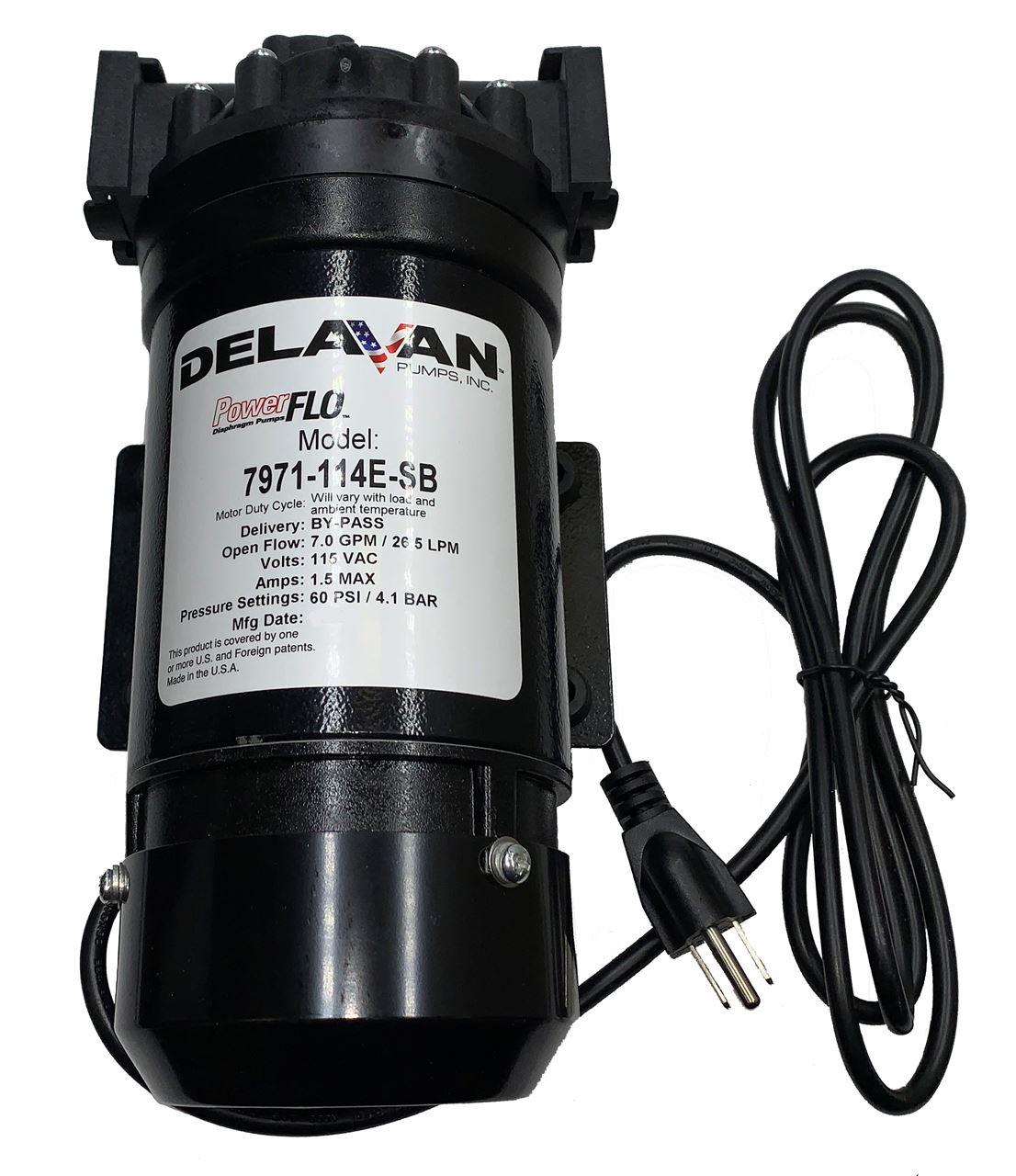

Picture of Delavan FB3 Diaphragm Pump 115/120V, 60PSI, 7.0GPM, BYP 3/4" Quick Attach

Delavan FB3 Diaphragm Pump 115/120V, 60PSI, 7.0GPM, BYP 3/4" Quick Attach

SKU: 7971-114E-SB

Brand: Delavan Ag Pumps, Inc.

$244.94

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan 7971-114E-SB PowerFLO™ Advanced FB3 Series 115/120VAC 7.0 GPM 60 PSI Diaphragm Pump with 3/4” Quick Attach Ports. Bypass Design – Continuous operation.


Features:
• FB3 pumps are Delavan’s new advanced 115/120VAC smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance
• The FB3 is the most advanced, high flow 115/120VAC pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard
• The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications
• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates
• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 115/120VAC Totally enclosed, non-ventilated
• Leads: 6’ Power cord with plug
• Amps: 1.5 Max


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene/Stainless Steel
• Fasteners: Stainless Steel


Manufacturer Recommendation:
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor


Pump:
• Bypass Design – Continuous operation with internal bypass
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Max Pressure: 60 PSI
• Inlet/Outlet Ports: 3/4” Quick Attach
• Packaging: Small box
• Weight: 10.15 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
