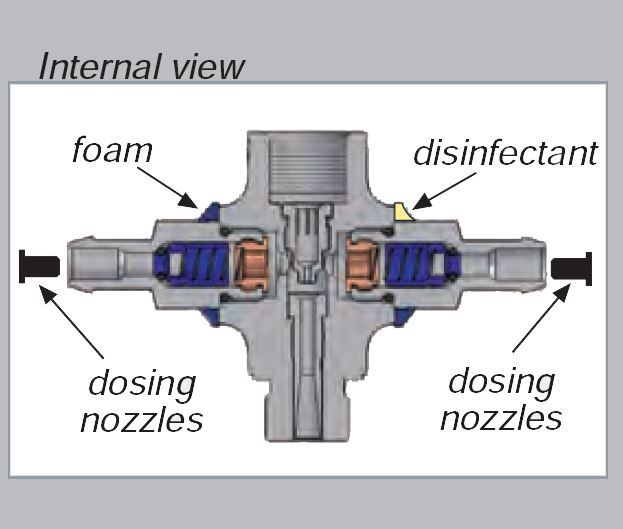

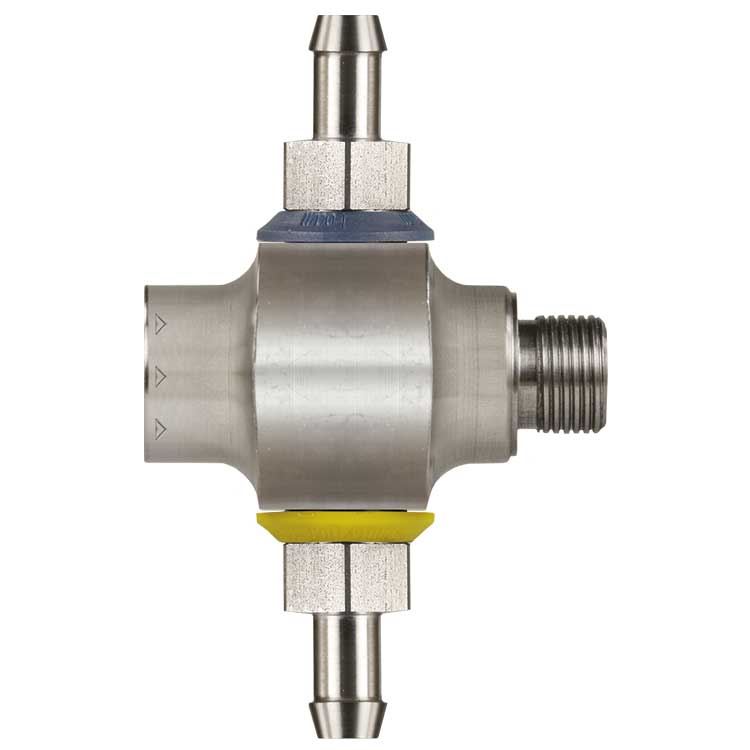

Suttner ST-166 Stainless Steel Dual Chemical Injector w/18 Metering / Dosing Nozzles, #4.0, 5000 PSI, 3/8" F x 3/8” M

Features
• Food grade quality and specifications
• Durable Stainless Steel housing

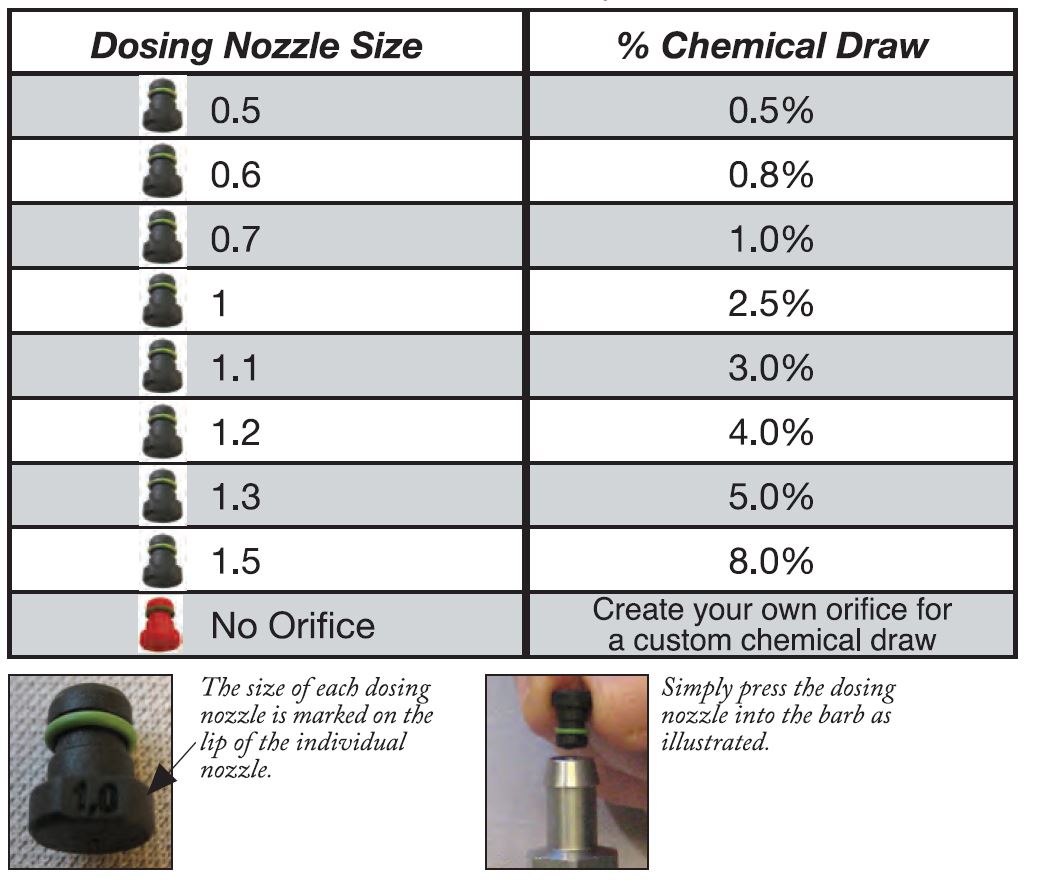

• 18 Metering / dosing nozzles included (See 3rd picture)
• Uses .35" I.D. Hose

Specifications
• Nozzle/Orifice Size: 4.0
• Max Flow Rate: 18 GPM
• Min Flow Rate: 1 GPM
• Max Pressure: 5,000 PSI
• Min Pressure: 1,000 PSI
• Max Temp: 194° F.
• Inlet: 3/8” Female
• Outlet: 3/8” Male
• Hose Barbs (2): .35” ID hose
• Weight: 0.75 lb

Please use Nozzle Chart to determine proper nozzle size

Note: If between sizes, choose the larger nozzle size

Nozzle Chart

See the ST-166 System Diagram below to determine the foam components needed

ST-166 System Diagram

Suttner ST-164 Stainless Steel Chemical Bypass Injector, #4.5, 5000 Psi, 3/8" F x 1/2” F

Field of Application
• Designed for the cleaning of vehicles carrying cattle, food, frozen foods and fish in order to avoid bacterial spread. Also suitable for cleaning milking parlours and applicable in cattle bredding, piggery, poultry farming and in the pisciculture
• The foam device is a combination made out of stainless steel and special high performance plastics. The addition of one out of two connected chemicals is determined by positioning the lever. All versions are suitable for the addition in low pressure from approx. 43 PSI up to max. 5,076 PSI
• When being operated in rinsing function up to 15.85 GPM pass through the unit without any drop in pressure
• Locks in position for accurate metering
• In combination with a foam lance (ST-72 or ST-75), an adjustable or a triple nozzle the ST-164 injector can suck in chemicals by means of the integrated check valve made out of stainless steel and spray them on or foam them depending on the chosen nozzle
• The ST-164 injector is available in the nozzle size of 3.5 – 11.0
• The dosing is adjusted by one of the 18 nozzle inserts which are included in the consignment. The connection for chemicals is equipped with an integrated check valve

Features
• Integrated lever that allows you to go from disinfectant to foam to rinse
• Food grade quality and specifications
• Durable Stainless steel construction
• 18 Dosing nozzles included
• Use 0.35 ID hose

Specifications
• Nozzle/Orifice Size: 5.5
• Max Flow Rate: 21 GPM
• Min Flow Rate: 1 GPM
• Max Pressure: 5,000 PSI
• Min Pressure: 1,200 PSI
• Max Temp: 212° F.
• Inlet: 3/8” Female
• Outlet: 1/2” Female
• Hose Barbs: .35” ID hose
• Weight: 4.80 lb

Please use Nozzle Chart to determine proper nozzle size

Note: If between sizes, choose the larger nozzle size

Nozzle Chart

See the ST-164 System Diagram below to determine the foam components needed

ST-164 System Diagram

Suttner ST-75 Brass Foam Head 4,000 PSI with #13.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals

Features
• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable
• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one
• The maximum flow is dependent on the chosen nozzle size
• By means of the integrated air injector in the foam head the air is sucked in on the face side
• Independent of the length of the lance a constant foam quality is guaranteed
• The spraying result is especially even as a high quality foam nozzle insert is used
• With stainless steel "wool" like foam pad

ST-75 with ST-160 Chemical Injector on YouTube

Specifications
• Air Injector Nozzle Size: 13.0
• Max Pressure: 4,000 PSI
• Flow Rate: 1 - 6 GPM
• Max Temp: 212° F.
• Inlet: 1/4" Female
• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included
• Weight: 0.31 lb

Please use Nozzle Chart to determine proper Spray Nozzle Size

Nozzle Chart

Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use

Foam Nozzle Chart

Suttner ST-75 Brass Foam Head 4,000 PSI with #8.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals

Features
• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable
• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one
• The maximum flow is dependent on the chosen nozzle size
• By means of the integrated air injector in the foam head the air is sucked in on the face side
• Independent of the length of the lance a constant foam quality is guaranteed
• The spraying result is especially even as a high quality foam nozzle insert is used
• With stainless steel "wool" like foam pad

ST-75 with ST-160 Chemical Injector on YouTube

Specifications
• Air Injector Nozzle Size: 8.0
• Max Pressure: 4,000 PSI
• Flow Rate: 1 - 6 GPM
• Max Temp: 212° F.
• Inlet: 1/4" Female
• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included
• Weight: 0.31 lb

Please use Nozzle Chart to determine proper Spray Nozzle Size

Nozzle Chart

Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use

Foam Nozzle Chart
