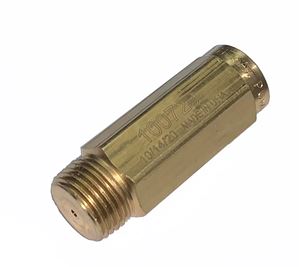

Picture of Safety Relief Valve 6,000 PSI, 1/2" MPT

Safety Relief Valve 6,000 PSI, 1/2" MPT

SKU: 100729

Brand: General Pump

$14.85

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump 100729 6,000 PSI Safety Relief Valve 1/2” MPT-N. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system


Features:
• High pressure safety valve: 2,500 – 6,000 PSI relief pressure
• One model fits all pressures - no springs to change
• Less “whistling” and chatter than competing brands
• Highly accurate over full range of pressures
• Fits any brand of pump
• Designed and made in the USA


Specifications:
• Adjustable Range: 2,500 - 6,000 PSI
• Max Volume: 6 GPM
• Discharge: End
• Max Temperature: 32 - 150° F
• Inlet: 1/2" NPT-M
• Dimensions: 2.6” x .875” Hex
• Weight: 0.325 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
