Spraying Systems 1/4" WashJet® 25º MEG Spray Nozzle

Features
• High impact flat fan spray pattern with uniform distribution
• Medium-sized drops
• Quick visual reference for spray alignment with milled side flats
• Longer wear life and flow control accuracy with especially hardened stainless steel construction

Specifications
• Nozzle Size: 20.0
• Spray Angle: 25º
• Max Pressure: 3,000 PSI
• Inlet: 1/4" Male NPT
• Weight: 0.75 Oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Features
• High Quality, German engineered components
• Nickel plated, stainless steel internal
• Double PTFE slide rings for easy movement
• Bearing material: PTFE/Bronze
• High performance plastic axial and radial slide bearing

Specifications
• Max Pressure: 5,000 PSI
• Max Flow: 12 GPM
• Max Temp: 300° F.
• Inlet: 3/8" Male NPT
• Outlet: 3/8" Female NPT
• RPM: 30
• Weight: 0.29 lb

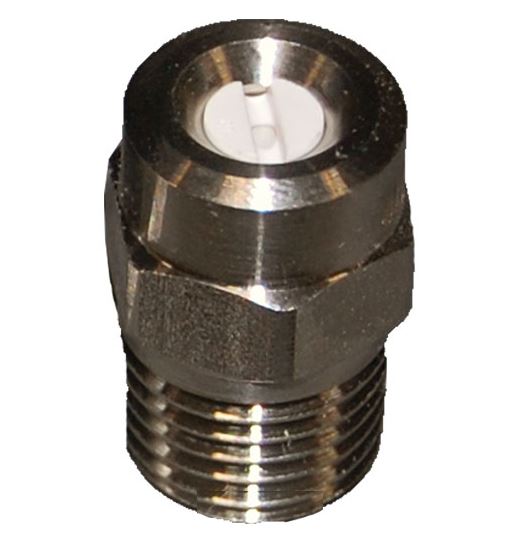

Mecline 15° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features

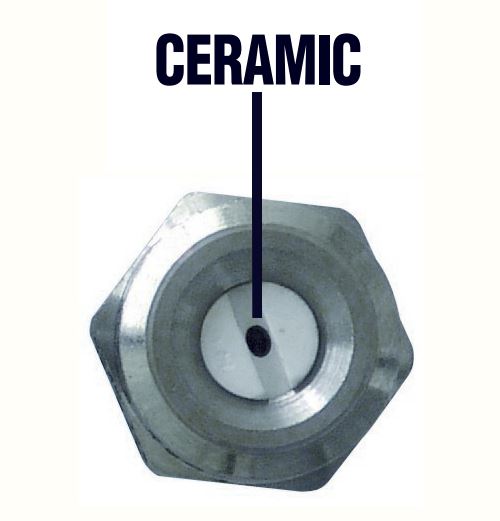

• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 15°
• Nozzle Size: 3.5
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

ProPulse® UBERFLEX™ 4,000 PSI 3/8" x 50' Blue Non-Marking Pressure Washer Hose with Quick-Connect Couplers. The most flexible & light weight in the industry! The latest technology from ProPulse® delivers a revolutionary upgrade from the standard commercial cold water pressure washer hose. UBERFLEX™ possesses the unique properties of superior resilience to permanent kinking and stability in length. It is also unmatched in abrasion, chemical, ozone and UV resistance. The UBERFLEX™ weighs over 10% less than the standard 1-wire rubber hose and the textured polyurethane cover offers reduced snagging and drag resistance - reducing user fatigue. UBERFLEX™ hoses are preferred by pressure washer manufacturers on their middle and high-end commercial cold-water equipment NOT FOR HOT WATER OR STEAM

UBERFLEX™ Hose on YouTube

Features:
• MADE IN THE USA: Every foot of ProPulse® UBERFLEX™ is designed, engineered and manufactured in the USA, assembled using imported and/or domestic end fittings
• PERMANENT KINK RESISTANCE: Let’s face it—all hoses can be kinked under the right conditions, but the unique UberFlex technology ensures that if the hose is pinched or kinked, it won’t stay that way permanently
• FLEXIBILITY: UberFlex feels more like an extension cord than a hose, and possesses the smallest bend radius in its class
• TRUE NON-MARKING: Adds to the overall ease of handling.
• TEXTURED COVER: The textured cover upgrade reduces tack and snag tendencies during handling, dragging and reeling
• UNMATCHED ABRASION, OZONE, UV AND CHEMICAL RESISTANCE: The proprietary high performance of the UberFlex cover is at least five times more abrasion resistant than traditional PVC covered hose

Hose Construction
• Inner Tube: Proprietary water and chemical resistant rubberized thermoplastic blend
• Reinforcement: Dual-ply high tenacity polyester with ProPulse® exclusive length stabilizing technology
• Cover: Abrasion resistant polyurethane, ProPulse exclusive low tack, low friction finish

Specifications:
• Hose: 3/8” ID x 50’ Long
• Working Pressure: 4,000 PSI
• Color: Blue
• Max. Water Temperature: 140° F.
• Ends: 3/8" Quick Connect couplers (1 steel plug & 1 brass socket)
• Black bend restrictors on both ends
• Weight 7.4 lbs
