Picture of 38" ST-54 Dual Lance 4,500 PSI With Soap Nozzle

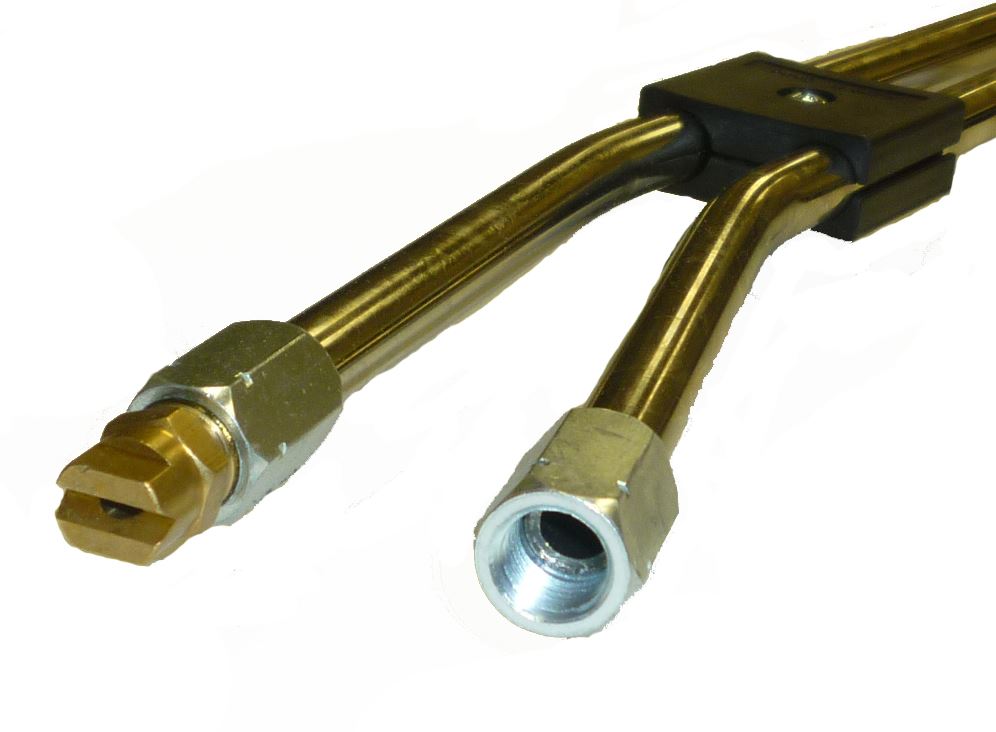

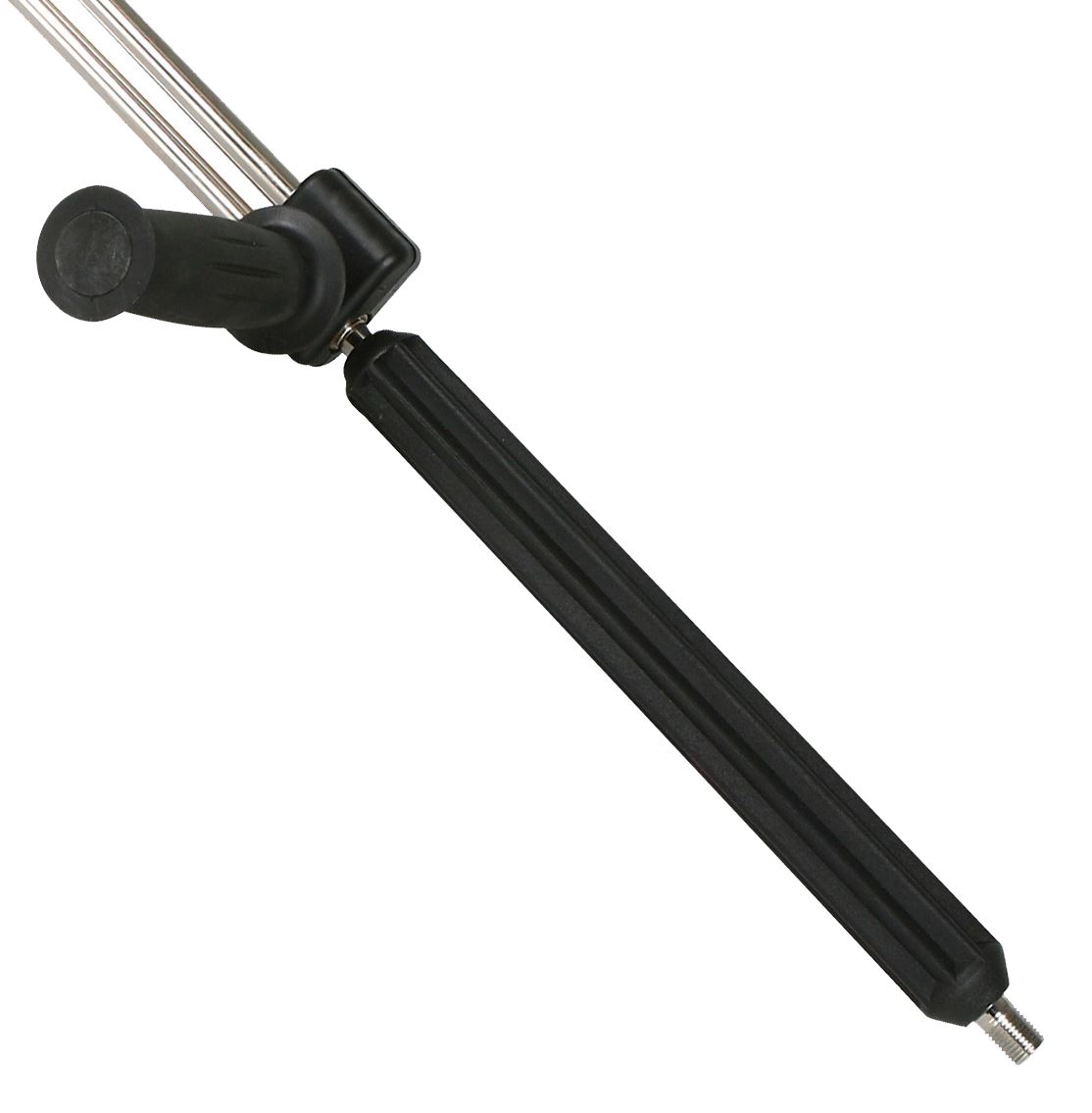

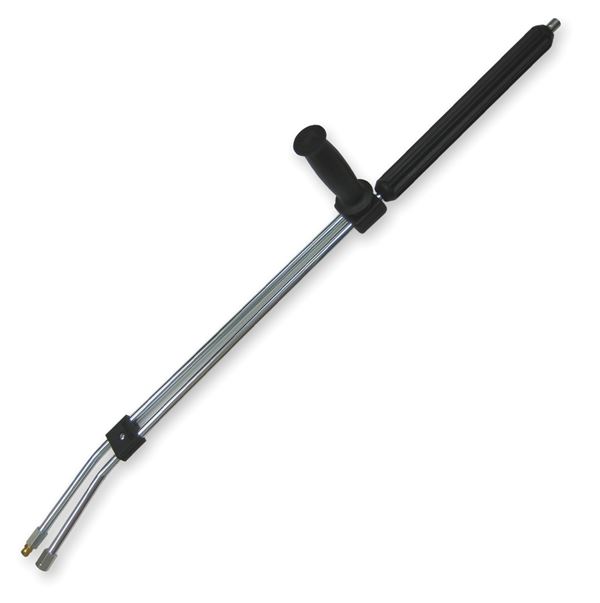

38" ST-54 Dual Lance 4,500 PSI With Soap Nozzle

SKU: 200054503X

Brand: Suttner America

$42.44

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner 38” ST-54 Dual Lance 4,500 PSI With Brass Soap Nozzle. For use when high and low pressures are needed. For example, spraying cleaning agents with low pressure through an injector valve (chemical injector required) and then cleaning with high pressure


Features
Made In Germany - High Quality, German engineered components
• High or low pressure operation is controlled by twisting the side handle
• The side handle helps manage the lance with ease for longer working periods
• Threads are rolled on providing consistent sealing and four times the strength than cut threads
• Lance is equipped with 65° x #30 low pressure brass soap nozzle


Specifications
• Max Pressure: 4,500 PSI
• Length: 38”
• Max Temp: 300° F.
• Lance Material: Plated steel
• Inlet: 1/4" Male NPT
• Outlets: 1/4" Female NPT x 1/4” Soap Nozzle
Note: 1/4” MPT Nozzle not included
• Weight: 2.72 lb

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
