Picture of 3/8 MPT x 1/4 FPT 90° Street Elbow Steel

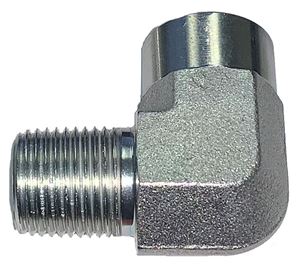

3/8 MPT x 1/4 FPT 90° Street Elbow Steel

SKU: S1016-CB

Brand: Fairview USA Inc.

$4.44

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Accutek® S1016-CB Steel 90° Street Elbow 3/8 MPT x 1/4 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.23 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

3/8 FPT x 1/4 MPT Adapter Steel

SKU: S1020-CB


Accutek® S1020-CB Steel Adapter 3/8 Female Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.13 lbs

  Price: $2.08

1/4 MPT x 1/4 MPT Hex Nipple Steel

SKU: S1022-B


Accutek® S1022-B Steel Male Hex Nipple 1/4 Male Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 5,000 PSI
• Burst Pressure: 20,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.06 lbs

  Price: $1.20

1/4 Coupler x 1/4 FPT ISO B 7241-1 Steel 5,000 PSI Quick Disconnect

SKU: QD-ISOBC4-4F


Accutek® QD-ISOBC4-4F 1/4 Coupler x 1/4 Female Pipe ISO Series B 7241-1 Steel 5,000 PSI Quick Disconnect. Fairview's ISO B Interchange Couplers Interchange with Aeroquip FD45, Foster FHK, Parker 60, Safeway BS10 and Faster HNV Series

Features:
• High flow characteristics and pressure ratings superior to Parker 60 series
• Industry interchangeability with other manufacturer's ISO "B" couplers and nipples
• Poppet style double shut-off.
• Nitrile NBR seals with PTFE back-up ring
• Proven ball lock mechanism
• 4 : 1 safety factor (Min. Burst = WP. X 4)
• Ideal for use with hydraulic and other fluids in both stationary and mobile industrial applications

Specifications:
• Working Pressure: 5,000 PSI
• Body Size: 1/4
• Female Pipe: 1/4
• Body Material: Steel
• Approx. Weight: 0.29 lbs

  Price: $8.40

1/4 Nipple x 1/4 FPT ISO B 7241-1 Steel 5,000 PSI Quick Disconnect

SKU: QD-ISOBN4-4F


Accutek® QD-ISOBN4-4F 1/4 Nipple x 1/4 Female Pipe ISO Series B 7241-1 Steel 5,000 PSI Quick Disconnect. Fairview's ISO B Interchange Couplers Interchange with Aeroquip FD45, Foster FHK, Parker 60, Safeway BS10 and Faster HNV Series

Features:
• High flow characteristics and pressure ratings superior to Parker 60 series
• Industry interchangeability with other manufacturer's ISO "B" couplers and nipples
• Poppet style double shut-off.
• Nitrile NBR seals with PTFE back-up ring
• Proven ball lock mechanism
• 4 : 1 safety factor (Min. Burst = WP. X 4)
• Ideal for use with hydraulic and other fluids in both stationary and mobile industrial applications

Specifications:
• Working Pressure: 5,000 PSI
• Body Size: 1/4
• Female Pipe: 1/4
• Body Material: Steel
• Approx. Weight: 0.08 lbs

  Price: $3.76
