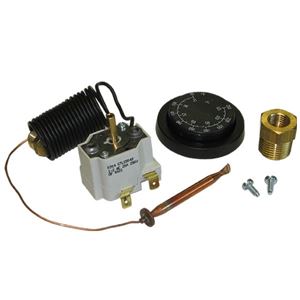

Picture of GP Panel Mount Probe Style Thermostat 86º - 250º

GP Panel Mount Probe Style Thermostat 86º - 250º

SKU: 100538

Brand: General Pump

$22.27

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump 100438 Capillary Style 86° - 250° Adjustable Thermostat. Probe Style Thermostat Insulated SS Capillary Copper Immersion Bulb (UL/CSA approved), 16(4)A-380V Electric Rating


Features:
• Panel mounted, dual scale knob.
• Rapid response, ± 5° F
• 60 Inch capillary tube with bulb rated to 4,000 PSI
• UL/CSA approved


Specifications:
• Temp Range: 86°- 250º F
• Max. Pressure: 4,000 PSI
• Electrical Rating AC: 120VAC-20A, 240VAC-20A, 120/240VAC-1/4HP
• Sensing Element: Copper Bulb
• UL/CSA Approved: Yes
• Weight: 0.40 Lb

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
