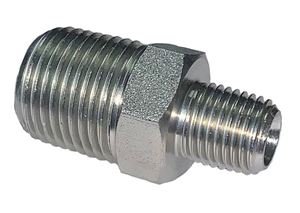

Accutek® S1022-DB Steel Male Hex Nipple 1/2 MPT x 1/4 MPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.16 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Comet 3/8" FPT High Pressure Ball Valve 7,250 PSI
Specifications:• Zinc plated steel body• Chrome plated steel ball• Max Pressure: 7,250 PSI• Max Temperature: 212º F• Inlet: 3/8" Female NPT • Outlet: 3/8" Female NPT• Replaces BV-38FF• Weight: 1.50 lbs
Accutek® S1021-B Steel Hex Head Plug 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.03 lbs
General Pump Replacement 22mm-14 Twist Coupler O-Ring (EPDM)
Specifications • Fits 22mm-14 twist coupler sockets from AR, Comet, General, MTM Hydro, PA and others• Material: EPDM• Max. Temperature: 250° F• Color: Black
