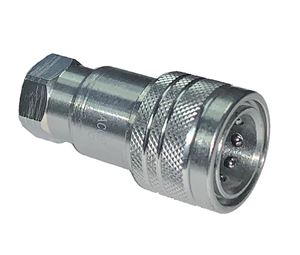

Accutek® QD-AGC4-4F 1/4 Coupler x 1/4 FPT Agricultural (Pioneer 4000) Interchange Steel 5,000 PSI Quick Disconnect. Fairview's Agricultural Interchange Couplers Interchange with Pioneer 4000, Safeway S20 and S40 Series
Features:• High Strength Steel Construction• Superior "Poppet" style valves• Nitrile NBR seals with PTFE back-up ring • Typical applications include agricultural equipment, gravel trucks and dump trucks
Specifications:• Working Pressure: 5,000 PSI• Body Size: 1/4• Female Pipe: 1/4• Body Material: Steel• Sleeve Style: One Way• Approx. Weight: 0.28 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Mecline 25° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Features• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts• Ceramic insert is resistant to wear• The ceramic insert guarantees a more precise and stronger stream• Stainless Steel AISI303 body
Specifications• Flat fan jet angle: 25°• Nozzle Size: 2.0• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Mecline 40° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Specifications• Flat fan jet angle: 40°• Nozzle Size: 3.0• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
>
General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2FSS• Weight: 0.09 lb
Propulse 6,000 PSI Grey “mark-less” 8' jumper hose. This grey jumper hose can be used as a bypass hose from unloader to pump, connector / whip hose from pump to heater coil, heater coil to outlet and for connecting pressure washer to a hose reel. Also is an ideal connector hose for carwash self service bays and pump room.
Features:• Suitable for cold and hot water commercial pressure cleaning applications• Reinforcement: Two layers of high tensile braided steel – R2 Rating• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 8’• Working (Maximum): Up to 6,000 PSI• Burst (Minimum): 18,000 PSI• Color: Grey, “mark-less”• Maximum Temperature: 212° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Weight 2.85 lbs
