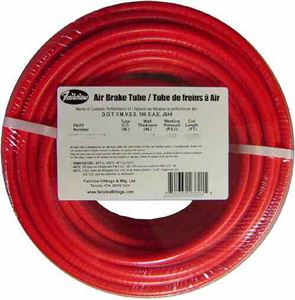

Picture of FLEX-DOT 1/8 OD X 100 FT Red Non-Reinforced Air Brake Tube - Type 3A

FLEX-DOT 1/8 OD X 100 FT Red Non-Reinforced Air Brake Tube - Type 3A

SKU: 1485-2RED-100

Brand: Fairview USA Inc.

$27.47

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Fairview FLEX-DOT 1485 Series 1/8" x 100' Red Non-Reinforced Air Brake Tubing - Type 3A. Air brake tube is designed for use with truck, trailer and other mobile air brake and auxiliary systems. This lightweight, flexible and UV stabilized tube is highly resistant to abrasion, oil, grease and road salt


MEETS OR EXCEEDS: S.A.E. J844 TEST REQUIREMENTS


FLEX-DOT 1485 Series Air Brake Tube is MADE IN CANADA

Compliance:
• Fairview’s FLEX-DOT air brake tube is dimensionally identical to the previous air brake tube described in SAE J844 Type A and Type B, and is compatible with the same fittings. Both compression and push-to-connect fittings can be used with FLEX-DOT tube in all applications other than truck to trailer connections, in which push-to-connect fittings are not suitable

Materials:
• Both the core tube and jacket are comprised of a custom formulated elastomer, offering exceptional heat aging, oil resistance, and low temperature flexibility, when compared to previous nylon materials
• With its improved flexibility at all temperatures, the FLEX-DOT tube is easier to install in tight quarters
• The special compound was custom formulated for this application and offers exceptional flexibility even at very low temperatures. Unlike traditional all-nylon tube, the FLEX-DOT elastomer hose can still be flexed at -65C (-85F)

SPECIFICATION SHEET FLEX-DOT SERIES 1485

INSTALLATION DATA SHEET

Specifications:
• Nominal OD: 1/8”
• Inside Diameter ID: 0.079”
• Wall Thickness: 0.023" +/-0.003"
• Length: 100’
• Temperature: -85°F to +200°F, -65°C to +93°C
• Type: 3A, Non-Reinforced
• Color: Red
• Working Pressure: 250 PSI
• Minimum Burst @ 68°F: 1,000 PSI
• Supported Bend Radius: 0.37”
• Unsupported Bend Radius: 0.37”
• Approx. Weight: 0.44 lbs
