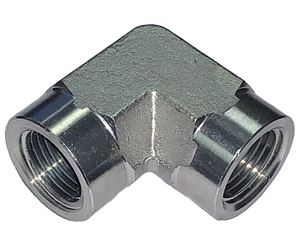

Accutek® S1000-E Steel 90° Elbow 3/4 FPT x 3/4 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 2,500 PSI• Burst Pressure: 10,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.76 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2FSS• Weight: 0.09 lb
Accutek® S1010-EC Steel Hex Bushing 3/4 Male Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 2,500 PSI• Burst Pressure: 10,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.20 lbs
Accutek® S1006-C Steel Male Branch Tee 3/8 Female Pipe x 3/8 Female Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.26 lbs
