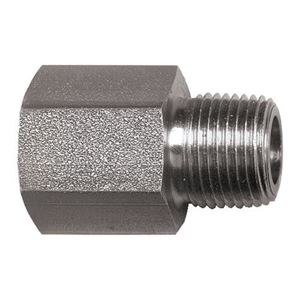

Accutek® S1020-CC Steel Adapter 3/8 FPT x 3/8 MPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.13 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2FSS• Weight: 0.09 lb
General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI
Features: • Quick disconnect design• Brass• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: Brass• Socket Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCS2FB• Weight: 0.20 lb
General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1FSS• Weight: 0.06 lb
General Pump #1.8mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 1.8 mm (2.0 to 3.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
