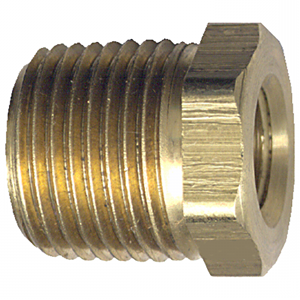

Fairview 100-CB 3/8 MPT x 1/4 FPT Brass Hex Bushing. Fairview's Bushing Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Use with Brass, Steel, Iron Pipe
• Working Pressure: 1,200 PSI
• Burst Pressure: 5,000 PSI
• Material: Brass
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.04 lbs

Fairview 125-4B 1/4 Hose ID x 1/4 Male Pipe Brass Hose Barb Fitting. Brass hose barbs are recommended for general purpose air, water and other low pressure applications. CA360 brass construction prevents rust and corrosion

Specifications:
• Working Temperature: -40°F to +220°F, -40°C to +104°C
• All hose barbs must be firmly fastened with hose clamps or ferrules
• Weight: 0.04 lbs

General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2FSS
• Weight: 0.09 lb

Fairview 100-DC 1/2 MPT x 3/8 FPT Brass Hex Bushing. Fairview's Bushing Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Use with Brass, Steel, Iron Pipe
• Working Pressure: 1,200 PSI
• Burst Pressure: 5,000 PSI
• Material: Brass
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.07 lbs
