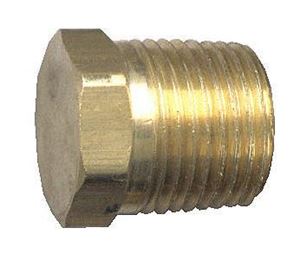

Fairview 121S-A 1/8 MPT Brass Solid Hex Head Plug. Fairview's Plug Hex Head Solid Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Use with Brass, Steel, Iron Pipe• Working Pressure: 1,200 PSI• Burst Pressure: 15,000 PSI• Material: Brass• Pipe threads must be sealed using approved thread sealant• Weight: 0.02 lbs
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2FSS• Weight: 0.09 lb
General / PA YG4500S Linear Rear Entry Trigger Gun.
Features: • Shockproof plastic housing• Ergonomic design, Minimizes fatigue for the operator• Stainless Steel seat and ball• Internal construction of brass and Stainless Steel
Specifications:• Max Pressure: 5,000 PSI• Max Flow: 10.5 GPM• Max Temp: 320° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT • Weight: 1.2 lbs
General Pump 15° x #6.5 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 15°• Nozzle Size: 6.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI
Features: • Quick disconnect design• Hardened Steel Zinc Plated
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCP2MS• Weight: 0.10 lb
