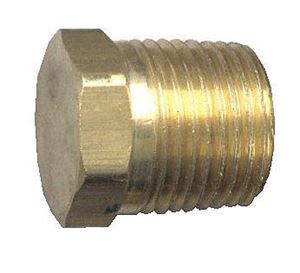

Fairview 121S-C 3/8 MPT Brass Solid Hex Head Plug. Fairview's Plug Hex Head Solid Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Use with Brass, Steel, Iron Pipe• Working Pressure: 1,200 PSI• Burst Pressure: 5,000 PSI• Material: Brass• Pipe threads must be sealed using approved thread sealant• Weight: 0.08 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
Accutek® S1022-C Steel Male Hex Nipple 3/8 Male Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.09 lbs
General Pump D10119 3 Way Brass Unloader Manifold Block, 3/8" NPT-F, Bolt-downFeatures:• Mounting blocks provide flexibility to mount additional accessories to your system
Specifications Sheet
Specifications: • Max Pressure: 4,000 PSI• Material: Brass
Specifications:• Max. Volume: 4.0 GPM• Adjustable pressure• No chemical injector• Brass body with aluminum bypass• Built-In bypass channel• Max. Fluid Temp.: 165° F.• Inlet Port: 3/8" FPT• Discharge Port: 3/8” MPT• Weight: 1.85 lbs.
