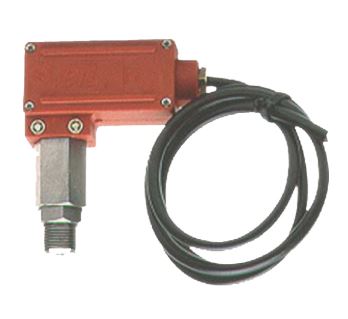

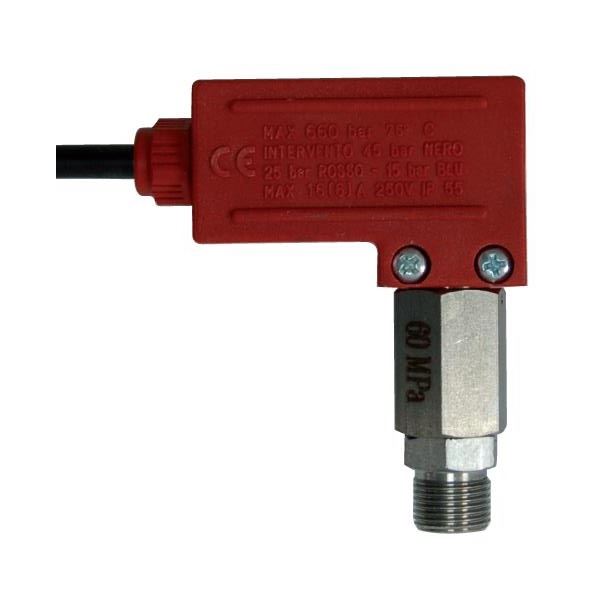

Picture of PA PR1 / GP Pressure Switch, 360 Switching , 3/8" M Stainless Steel 9,570 PSI

PA PR1 / GP Pressure Switch, 360 Switching , 3/8" M Stainless Steel 9,570 PSI

SKU: 29.0000.25

Brand: P.A. Srl

$47.92

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA PR1 / General Pump YPRSWITCHHPL 9,570 PSI Pressure Switch with 360 PSI (Red) activation and 3/8" BSP-M stainless steel inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (360 PSI) , opens or closes an electrical control contact


Specifications
• Activation (Red) PSI: 360
• Max. Voltage: 250
• Max Rated Pressure: 8,700 PSI
• Max Permissible Pressure: 9,570 PSI
• Rated Temp: 195° F
• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Stainless Steel
• Cable Length: 47" (1200 mm)
• Electric Wire: 3 x 1 mm
• Inlet: 3/8" Bsp M
• Weight: 10.3 oz.
