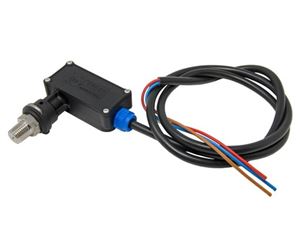

Picture of PA PR16 / GP Pressure Switch, 220 Switching (Blue), 1/4" M Stainless Steel 5,000 PSI

PA PR16 / GP Pressure Switch, 220 Switching (Blue), 1/4" M Stainless Steel 5,000 PSI

SKU: 29.0035.51

Brand: P.A. Srl

$21.86

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA PR16 / General Pump YPRESSWITCH1521 5,000 PSI Pressure Switch with 220 PSI (Blue) activation and 1/4" NPT-M stainless steel inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (220 PSI) , opens or closes an electrical control contact


Specifications
• Activation (Blue) PSI: 220
• Max. Voltage: 250
• Permissible Pressure: 5,000 PSI
• Rated Temp: 165° F
• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Stainless Steel
• Cable Length: 47" (1200 mm)
• Electric Wire: 3 x 1 mm
• Inlet: 1/4" NPT-M
• Weight: 6.63 oz.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Vacuum Switch 2.5" (HG)

SKU: MVVS2.5

• Normally open switch
• Closes when pump vacuum is sensed
• Opens when pump is shut down or water tank goes dry
• Should be used on pressure washers 3 GPM to 4.5 GPM
• Vacuum Required: 2.5” HG
• Inlet: 1/4” FPT
• Contacts: 16 AMP
• Max Water Temp: 131º F
• Weight: 1.25 lbs.

  Price: $26.02

3/8 MPT Branch Tee Steel

SKU: S1006-C


Accutek® S1006-C Steel Male Branch Tee 3/8 Female Pipe x 3/8 Female Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.26 lbs

  Price: $6.18

Safety Relief Valve 6,000 PSI, 1/2" MPT. 1/4" Hose Barb

SKU: 100722


General Pump 100722 6,000 PSI Safety Relief Valve 1/2” MPT-N with 1/4” Hose Barb. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system


Features:
• High pressure safety valve: 2,500 – 6,000 PSI relief pressure
• One model fits all pressures - no springs to change
• Less “whistling” and chatter than competing brands
• Highly accurate over full range of pressures
• Fits any brand of pump
• Designed and made in the USA


Specifications:
• Adjustable Range: 2,500 - 6,000 PSI
• Max Volume: 6 GPM
• Discharge: Side
• Hose Barb: 1/4”
• Max Temperature: 32 - 150° F
• Inlet: 1/2" NPT-M
• Body Dimensions: 2.6” x .875” Hex
• Weight: 0.325 lbs

  Price: $20.94

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D11009


General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2MS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.14
