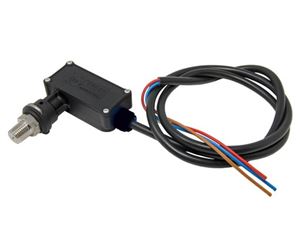

PA PR16 / General Pump YPRSWITCHXL 4,060 PSI Pressure Switch with 580 PSI (Black) activation, 1/4" NPT-M stainless steel inlet and 67" wire. Electro-mechanical device, which, upon reaching a pre-set pressure (580 PSI) , opens or closes an electrical control contact
Specifications• Activation (Black) PSI: 580• Max. Voltage: 250• Permissible Pressure: 4,060 PSI• Rated Temp: 165° F• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load • Electrical insulation: 55 IP• Connection Material: Stainless Steel• Cable Length: 67" (1200 mm)• Electric Wire: 3 x 1 mm• Inlet: 1/4" NPT-M• Weight: 8.26 oz.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features:• Automatic trigger shutoff and trigger lock
Specifications:• Max Pressure: 4,000 PSI• Max Flow: 7.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT • Weight: 18 oz
General Pump 100438 Capillary Style 86° - 195° Adjustable Thermostat. Probe Style Thermostat Insulated SS Capillary Copper Immersion Bulb (UL/CSA approved), 16(4)A-380V Electric Rating
Features:• Panel mounted, dual scale knob.• Rapid response, ± 5° F• 60 Inch capillary tube with bulb rated to 4,000 PSI• UL/CSA approved
Specifications Sheet
Specifications:• Temp Range: 86°- 195º F• Max. Pressure: 4,000 PSI • Electrical Rating AC: 120VAC-20A, 240VAC-20A, 120/240VAC-1/4HP• Sensing Element: Copper Bulb• UL/CSA Approved: Yes• Weight: 0.40 Lb
General Pump 100534 6,000 PSI Safety Relief Valve 3/8” MPT-N. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system
Features:• High pressure safety valve: 2,500 – 6,000 PSI relief pressure • One model fits all pressures - no springs to change• Less “whistling” and chatter than competing brands• Highly accurate over full range of pressures• Fits any brand of pump• Designed and made in the USA
Specifications:• Adjustable Range: 2,500 - 6,000 PSI• Max Volume: 6 GPM • Discharge: End• Max Temperature: 32 - 150° F • Inlet: 3/8" NPT-M• Dimensions: 2.6” x .875” Hex• Weight: 0.325 lbs
General Pump DF07550 Clear Bowl Inlet Filter / Strainer 3/4" NPT-F 50 Mesh
Features• Keeps debris out of pump• Clear plastic bowl makes it easy to see when cleaning is required• 50 mesh, stainless steel mesh screen• Easy to install• Easy to disassemble and assemble for cleaning• Made with durable long lasting materials
Specifications• Bowl: Polycarbonate• Body: Nylon• Screen: Stainless steel• O-Ring: EPDM• Maximum Pressure at 125° F: 100 PSI• Maximum Pressure at 70° F: 150 PSI• Inlet: 3/4” NPT-F• Outlet: 3/4” NPT-F • Weight: 0.50 Lbs
