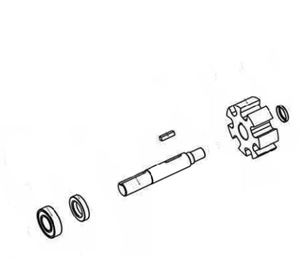

Delavan RollerPRO® 4900 Roller Pump Kit
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• Complete roller replacements takes about 3 minutes• To ensure the best performance for your investment, Delavan incorporates such features as “Ultra” rollers, heavy-duty sealed bearings, viton seal rings, stainless steel shafts and rotors, and close tolerance machining. All are standard
Specifications• Type: 4-Roller design• Max. Flow: 9.2 GPM• Max Operating Speed: 2,600 RPM• Max Pressure: 100 PSI• Max Recommended Temperature: 140°F (60° C)• Port Size: 3/4” NPT (female)• Base Mounted: 5⁄16 -18 UNC-2B (2 holes)• PTO: Use torque bar and chain• Shaft Size: 5⁄8” solid shaft• Rotation: CW (standard)• Housing: Cast Iron• Rollers: 1/2” Ultra rollers (standard)• Shaft Seals: Viton cartridge type lip seals• Seal Ring: Viton• Shaft & Rotor: Extra-fine finish 404 SST• Bearings: Permanently-lubricated, heavy-duty sealed bearings• Weight: 5 lbs
Delavan 50101-1 set screw coupler. For 5/8” diameter electric motor or gas engine; 5/8” pump shaft; 2600 RPM; mild steel with set screws
Specifications:• Use with Delavan 4400 series pumps• For 5/8” Diameter electric motor or gas engine• Max. Operating Speed: 2,600 RPM• Mild steel construction• Weighs 0.60 lbs
