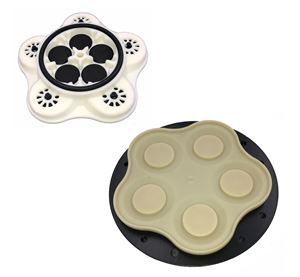

Picture of Delavan Valve Plate/Lower Housing Sub-Assembly 5850/5950

Delavan Valve Plate/Lower Housing Sub-Assembly 5850/5950

SKU: VLA-5850-RT

Brand: Delavan Ag Pumps, Inc.

$50.22

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan VLA-5850-RT Valve Plate/Lower Housing Sub-Assembly

Specifications:
• Works with Delavan 5850 & 5950 series pumps
• (1) Delavan Lower Housing Assembly LHA-5850
• (1) Delavan Valve Housing Assembly VHA-5800
• Weight: 14.4 oz

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

Delavan Diaphragm Flex Pump 12 V, 60 PSI, 2.2 GPM, 3/4" QA Ports, Fittings I-Series

SKU: 7822FS-201-SBIP


Delavan PowerFLO™ 7822FS Flex I-Series 2.2 GPM 60 PSI Diaphragm Pump with 3/4” Quick Attach Ports and Fittings Kit. Thanks to the new 3/4” Quick Attach adapter system and bolt pattern, the Flex Pump can fit into most competitor spray systems that use 3/4” quick attach with ease. The new Flex I-Series Pump will be able to replace your old pump and provide a new level of performance and life. You can figuratively speaking “feel the difference in weight and productivity” between the two pumps.


Features:
• 100% Factory tested
• 2 Year warranty from date of purchase
• This demand pump will turn off when the spray gun or boom is turned off, saving energy and increasing the life of the pump


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 8.5
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


Quick Connect Fittings Kit:
• (2) 5/8” QA x 3/8" HB Elbow Fittings
• (1) 5/8” QA x 3/8" Straight HB Fitting
• (2) 3/4” to 5/8” Port Adapter
• (2) Slide Connectors for 5/8” Fittings


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 2.2 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/4 Quick Attach
• Replaces 7822FS-201-I
• Packaging: Small box
• Weight: 6.0 lbs

  Price: $62.32
