Fairview 40-10 5/8 Tube OD Forged Short Nut. Fairview's Forged Brass Short Nut SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Note: Fairview 40 Series Flare Nuts are hot forged and marked C37700 in accordance with CAN/CSA-B149 gas installation code requirements
• Hex Size: 1-1/16
• Working Pressure: 650 PSI
• Material: Forged Brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.12 lbs

Fairview 40-6 3/8 Tube OD Forged Short Nut. Fairview's Forged Brass Short Nut SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Note: Fairview 40 Series Flare Nuts are hot forged and marked C37700 in accordance with CAN/CSA-B149 gas installation code requirements
• Hex Size: 13/16
• Working Pressure: 1,000 PSI
• Material: Forged Brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.06 lbs

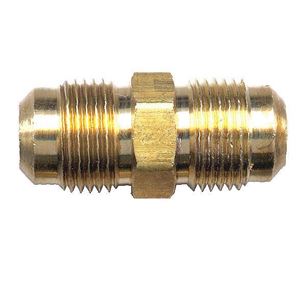

Fairview 42-10 5/8 Tube OD x 5/8 Tube OD Brass Union Coupling. Fairview's Forged Brass Union Coupling Male Flare to Male Flare SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Working Pressure: 650 PSI
• Material: Forged brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.18 lbs

Fairview 101M-B 1/4 MPT x 1/4 MPT x 1/4 MPT Forged Brass Male Tee. Fairview's Forged Male Tee Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas to 1,200 PSI WP

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Use with Brass, Steel, Iron Pipe
• Working Pressure: 1,200 PSI
• Burst Pressure: 15,000 PSI
• Material: Forged Brass
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.07 lbs
