Picture of 3/4" FPT Brass Coupling Style Check Valve 250 PSI

3/4" FPT Brass Coupling Style Check Valve 250 PSI

SKU: 103CV-E

Brand: Fairview USA Inc.

$11.26

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description

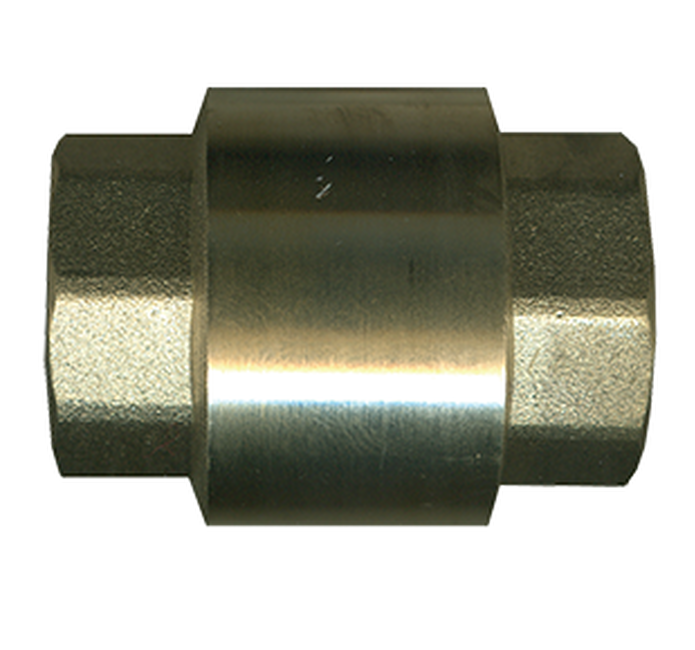

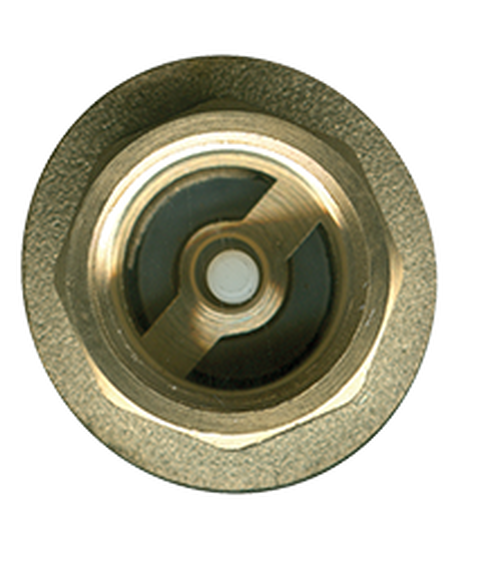

Fairview 103CV-E 3/4" Female Pipe Forged Brass Coupling Style Check Valve

INSTALLATION DATA SHEET

Features:
• 250 P.S.I. non-shock cold water
• Forged brass construction for greater strength
• May be installed horizontally or vertically
• Less than 1 P.S.I. cracking pressure
• Note: This valve is intended for use with air and water only

Specifications:
• Thread: 3/4 FPT
• Max Pressure: 250 PSI
• Body Material: Forged brass
• Working Temperature: -20°F to 100°F
• Weight: 0.36 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of GP Quick Connect Fittings 5,000 PSI (SS Plug & SS Socket)

GP Quick Connect Fittings 5,000 PSI (SS Plug & SS Socket)

SKU: 88.0155


General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)


Features:
• Quick disconnect design
• Body Material: 304 Stainless steel
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Works with standard quick connects
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $8.96
Picture of QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D10003


General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCS2FB
• Weight: 0.20 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $3.62
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D11008


General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2FS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $0.99
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D11009


General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2MS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.06
