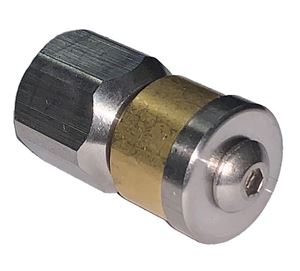

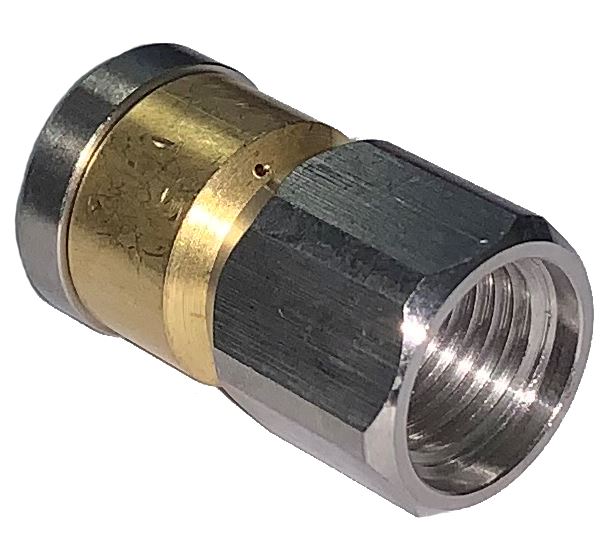

1/4” General Pump # 3.0 “Multi-Nozzle” Type Sewer Nozzle 1 Front 6 Rear 5,000 PSI.

Features
• “Multi-Nozzle” nozzles combine the features of “Penetrator” and “Flushing” nozzles
• A single forward nozzle penetrates clogs and debris
• 6 rear facing nozzles advance hose through pipe
• Dual angle rear facing nozzles (3 x 25°) and (3 x 45°) combine forward thrust and pipe wall cleaning
• Excellent for cutting through roots, dirt and debris
• High pressure nozzles are sized to match the flow and pressure specifications of the equipment
• Heat-treated Stainless Steel nozzles are wear and corrosion resistant
• Great for pipe, sewer and drain cleaning
• Compact design allows for maneuverability and cornering within pipes
• Works best on 2" to 4" Pipes

Specifications
• Nozzle Size: # 3.0
• Material: Stainless steel
• Maximum Pressure: 5,000 PSI
• Inlet: 1/4" NPT-F
• Outside Diameter (O.D.): .63”
• Weight: .05 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Twist Coupler Socket, 1/4" FPT x M22-14MM F Brass 4,000 PSI

Features:
• Secure twist connection
• Precision machined
• High-Impact plastic Knob
• Internal o-ring seal

Specifications:
• Max. Pressure: 4,000 PSI
• Max. Flow: 10.0 GPM
• Material: Brass
• Outlet: Female M22-14MM F
• Inlet: 1/4” FPT

Twist Coupler Socket, 1/4" MPT x M22-14MM F Brass 4,000 PSI.

Features:
• Secure twist connection
• Precision machined
• High-Impact plastic Knob
• Internal o-ring seal

Specifications:
• Max. Pressure: 4,000 PSI
• Max. Flow: 10.0 GPM
• Material: Brass & Zinc plated steel
• Outlet: Female M22-14MM F
• Inlet: 1/4” MPT

Construction:
• Inner Tube: Yellow seamless thermoplastic
• Reinforcement: High tensile double synthetic fiber braids
• Cover: Abrasion resistant polyether-urethane

Features:
• Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions
• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product
• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis
• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption
• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance
• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested

Specifications:
• Service Temp. Range: -40º F to +160º F
• Hose ID: 1/4”
• Assembled Length: 300’
• Male NPT Fittings: 1/4 - 18
• Color: Red
• Max. Working Pressure: 5,000 PSI
• Weight: 20.5 lbs.
