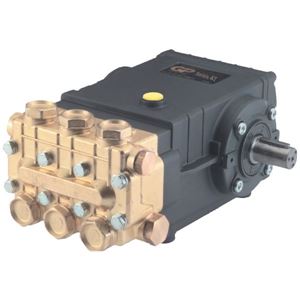

Picture of 3,500 PSI 4.5 GPM General Solid Shaft Pump 1,450 RPM

3,500 PSI 4.5 GPM General Solid Shaft Pump 1,450 RPM

SKU: TS1811

Brand: General Pump

$480.00

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General TS1811 Triplex Plunger Pump 3,500 PSI 4.5 GPM 1,450 RPM / 3,500 PSI 4.0 GPM 1,290 RPM / 3,500 PSI 5.0 GPM 1,610 RPM


Features:
• The preferred pump frame in the pressure cleaning industry
• Forged brass manifold with an exclusive lifetime warranty
• Large capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods for maximum life
• Heavy-duty tapered roller bearing
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves
• Available in left-handed “L” version


Specifications:
• Series 47 Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 4.5 / 4.0 / 5.0 GPM
• Max. PSI: 3,500
• Max. Pump Speed: 1,450 / 1,290 / 1,610 RPM
• Shaft Diameter: 24mm Solid
• Max. Fluid Temp.: 165° F.
• Inlet Ports (2): 1/2-14 BSPP-F
• Discharge Ports (2): 3/8- BSPP-F
• Drive Side: Standard right
Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation
• Weight: 32.0 lb.

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
