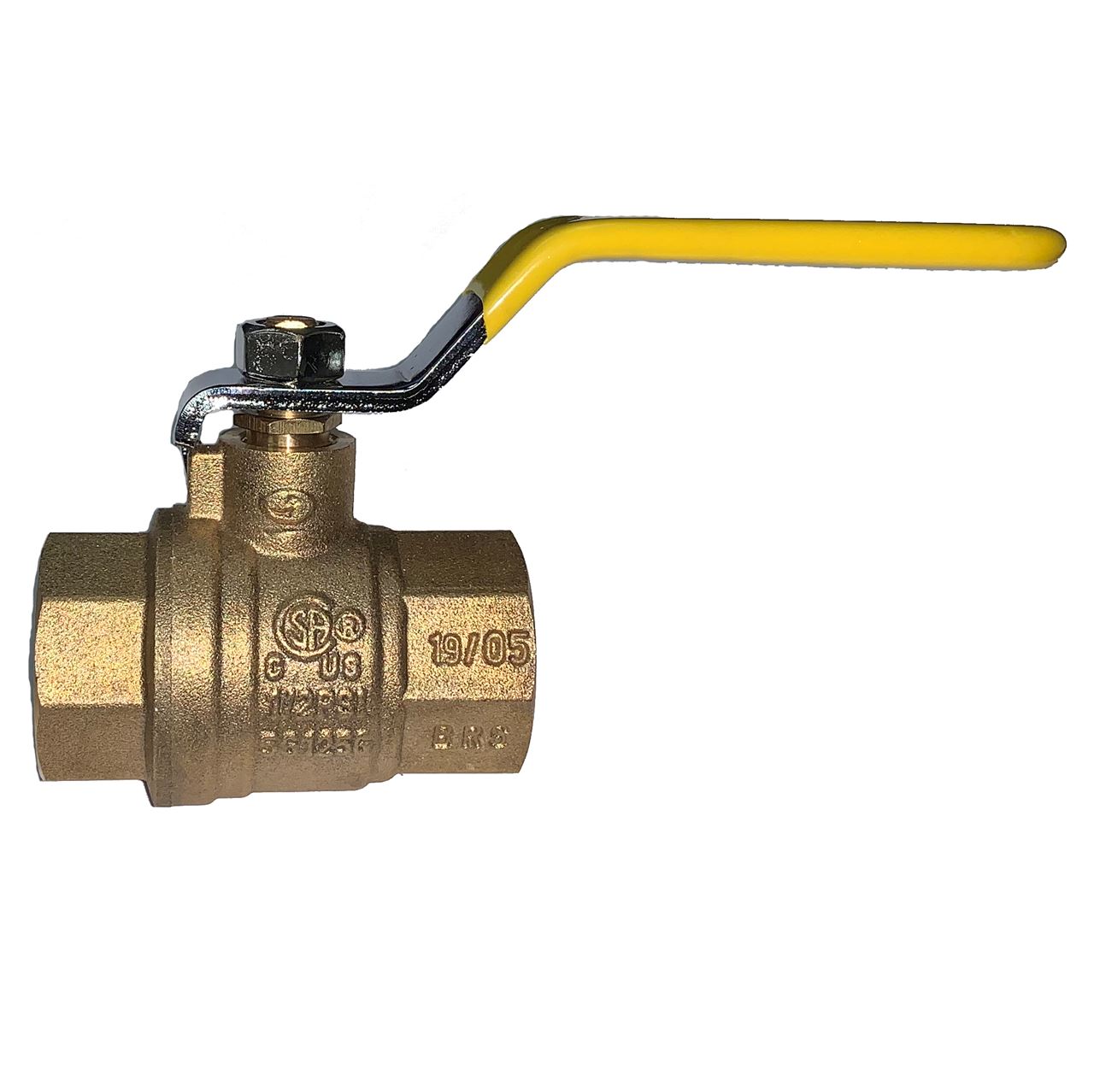

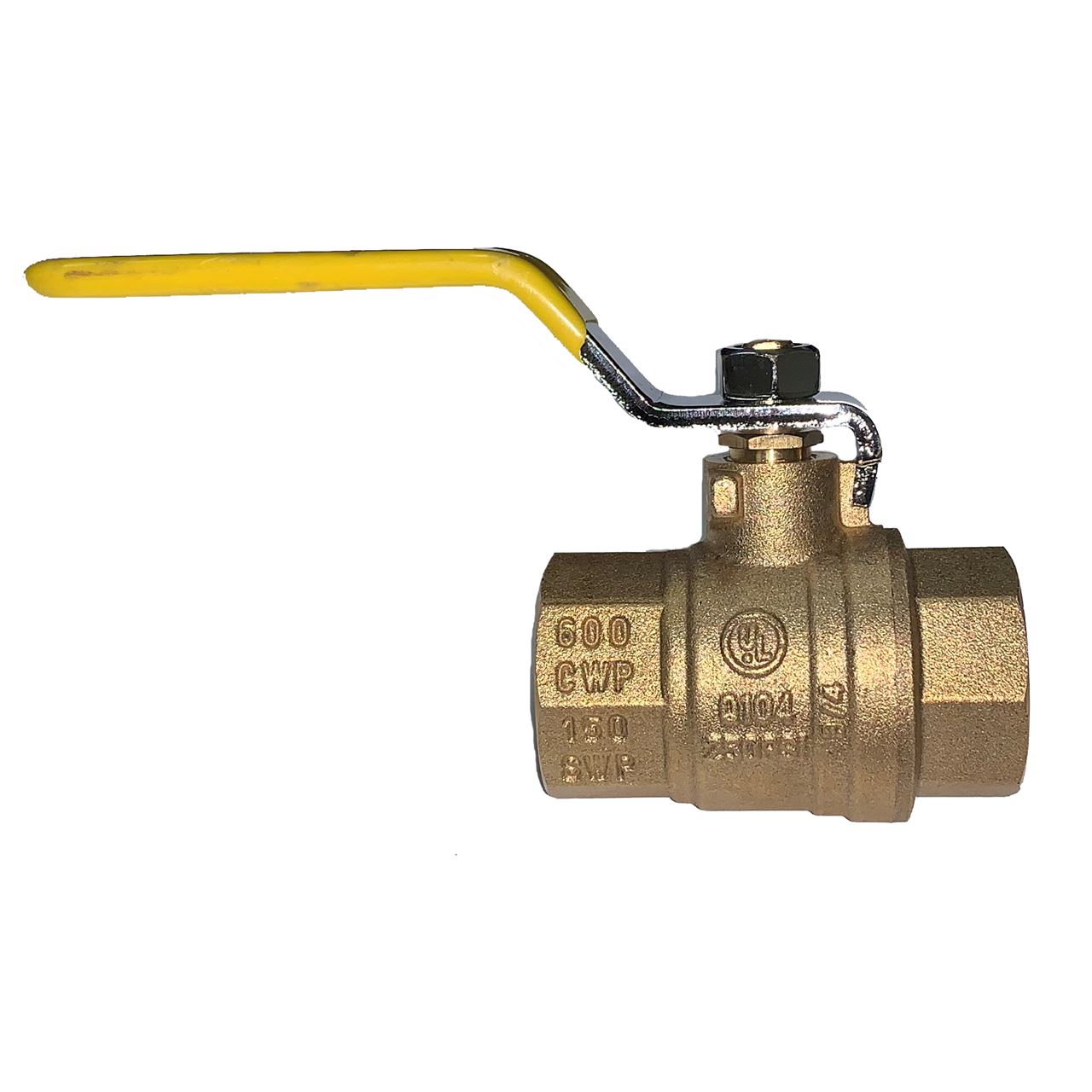

Fairview GAS-FLO™ BV2103-D 1/2" FPT Forged Brass Ball Valve 600 WOG, 150 WSP. Fairview's Forged Brass Ball Valves are full port and CSA, CGA & UL certified

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Features:
• Brass valves for use in W.O.G. = Water, Oil and Gas; W.S.P. = Working Steam Pressure applications
• Two piece Body
• Full Port
• Blowout-Proof Stem
• PTFE Seats
• CSA - ANSI Z21.15/CGA 9.1, ASME B16.44, CGA CR 91-00
• CAN/CGA 3.16, ASME B16.33 & ASME B16.38
• UL 842 (MHKZ): Manual valves-250 psi

Specifications:
• W.O.G: 600
• W.S.P: 150
• Pipe Size: 1/2” FPT
• Connection Type: Female to Female
• Materials: Brass C3700, Chrome & Nickel Plated Steel, PTFE
• Weight: 0.31 lbs
