General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP1FSS
• Weight: 0.06 lb

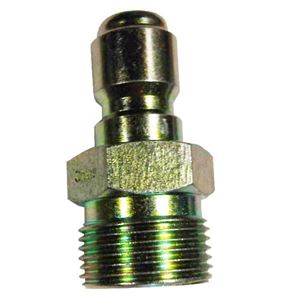

Twist Coupler Plug, 1/4" FPT x M22-14MM M

Features:
• Precision machined

Specifications:
• Max. Pressure: 4,000 PSI
• Max. Flow: 10.0 GPM
• Material: Brass
• Inlet: 1/4” FPT
• Outlet: Male M22-14MM M

1/4” QC Plug x M22-14MM F Twist Coupler Socket Adapter. Adapts from quick connect to 22mm twist connect. Quick connect a standard 1/4” hose or spray gun to a 22mm machine

Features:
• Secure twist connection
• Precision machined
• High-Impact plastic Knob
• Internal o-ring seal

Specifications:
• Max. Pressure: 4,000 PSI
• Max. Flow: 10.0 GPM
• Material: Brass & Zinc plated steel
• Inlet: 1/4” QC plug
• Outlet: Female M22-14MM F

General Pump 15° x #2.0 S-Style Spray Nozzle 1/8” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 15°
• Nozzle Size: 2.0
• Operating Pressure: 5,000 PSI
• Connection: 1/8” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
