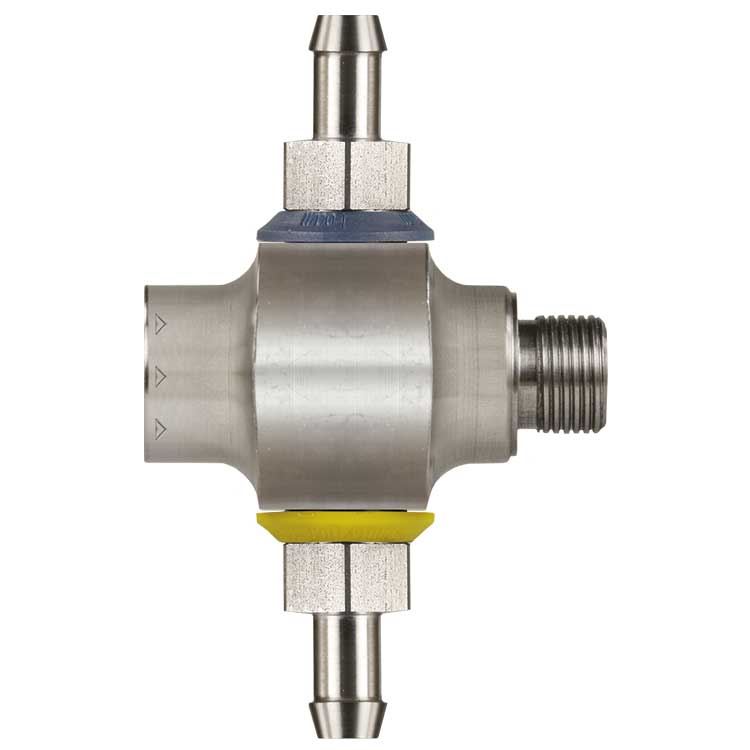

Suttner ST-166 Stainless Dual Chemical Injector w/18 Metering Nozzles, #18.0, 3/8"

SKU: 200166580

Brand: Suttner America

$173.70

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-166 Stainless Steel Dual Chemical Injector w/18 Metering / Dosing Nozzles, #18.0, 5000 PSI, 3/8" F x 3/8” M


Features
• Food grade quality and specifications
• Durable Stainless Steel housing
• 18 Metering / dosing nozzles included (See 3rd picture)
• Uses .35" I.D. Hose


Specifications
• Nozzle/Orifice Size: 18.0
• Max Flow Rate: 18 GPM
• Min Flow Rate: 1 GPM
• Max Pressure: 5,000 PSI
• Min Pressure: 1,000 PSI
• Max Temp: 194° F.
• Inlet: 3/8” Female
• Outlet: 3/8” Male
• Hose Barbs (2): .35” ID hose
• Weight: 0.75 lb


Please use Nozzle Chart to determine proper nozzle size


Note: If between sizes, choose the larger nozzle size

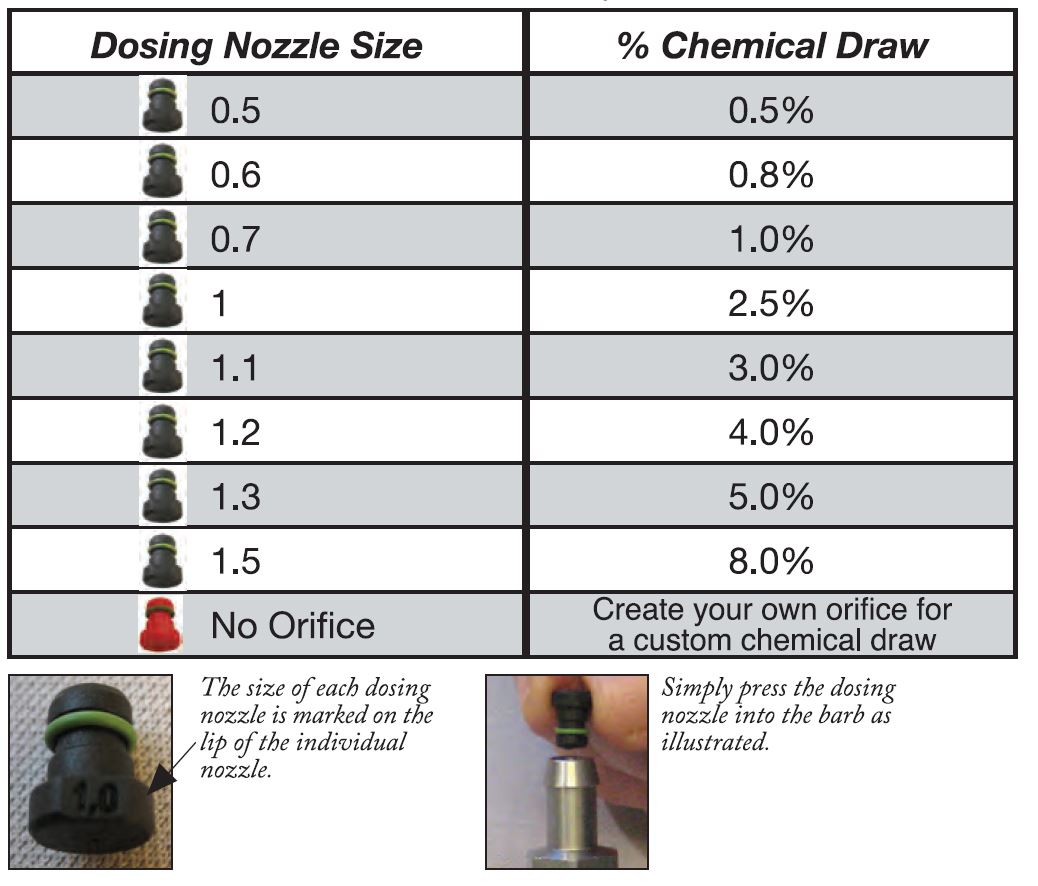

Nozzle Chart



See the ST-166 System Diagram below to determine the foam components needed

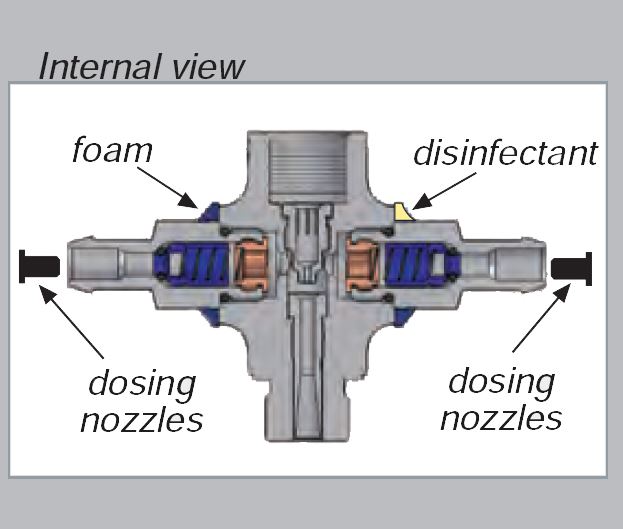

ST-166 System Diagram

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
