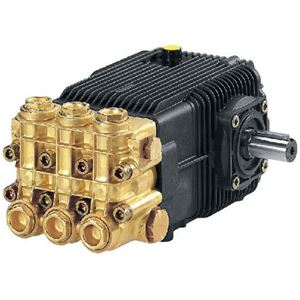

Annovi Reverberi AR XWT2118N solid shaft triplex plunger pump is rated up to 5.55 GPM at max 2,900 PSI spins a 24mm solid shaft at 500 RPM using a 3/4”F inlet and 3/8"F discharge thread.
Specifications:• Solid Shaft for Belt or Gear Drive• Max. Volume: 5.55 GPM• Max. Discharge Pressure: 2,900 PSI• Max. Pump Speed: 500 RPM• Shaft Diameter: 24mm Solid• Max. Horsepower Requirements: 11.0 EBHP• Bearings are premium SKF tapered roller bearings that provide extra load support, smoother and lower crankcase running temperatures and overall extended pump life• Max. Fluid Temp.: 160 degrees F.• Inlet Ports (2): 3/4" BSP• Discharge Ports (2): 3/8" BSP• Drive Side: Standard right• Forged brass head & valve covers• Plungers are extra thick solid ceramic titanium impregnated for extended seal and pump life• Weight: 34.0 lb.
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
