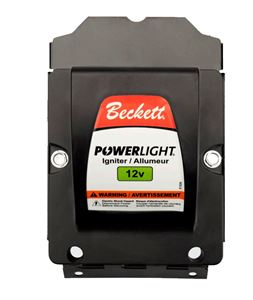

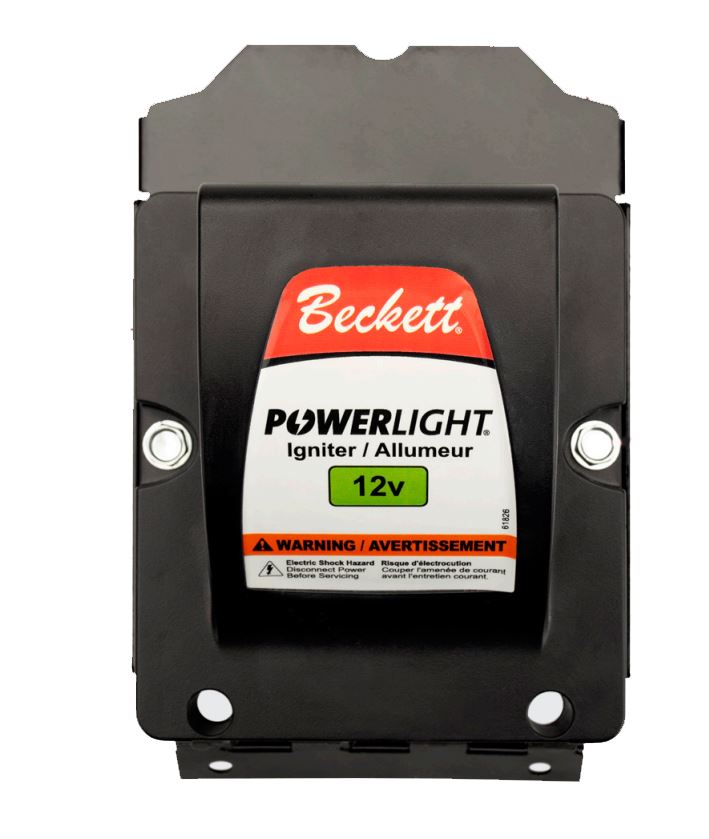

Picture of Beckett ADC Powerlight Igniter 12VDC with Cad Cell

Beckett ADC Powerlight Igniter 12VDC with Cad Cell

SKU: 5270001U

Brand: Beckett, R.W. Corp.

$172.13

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description

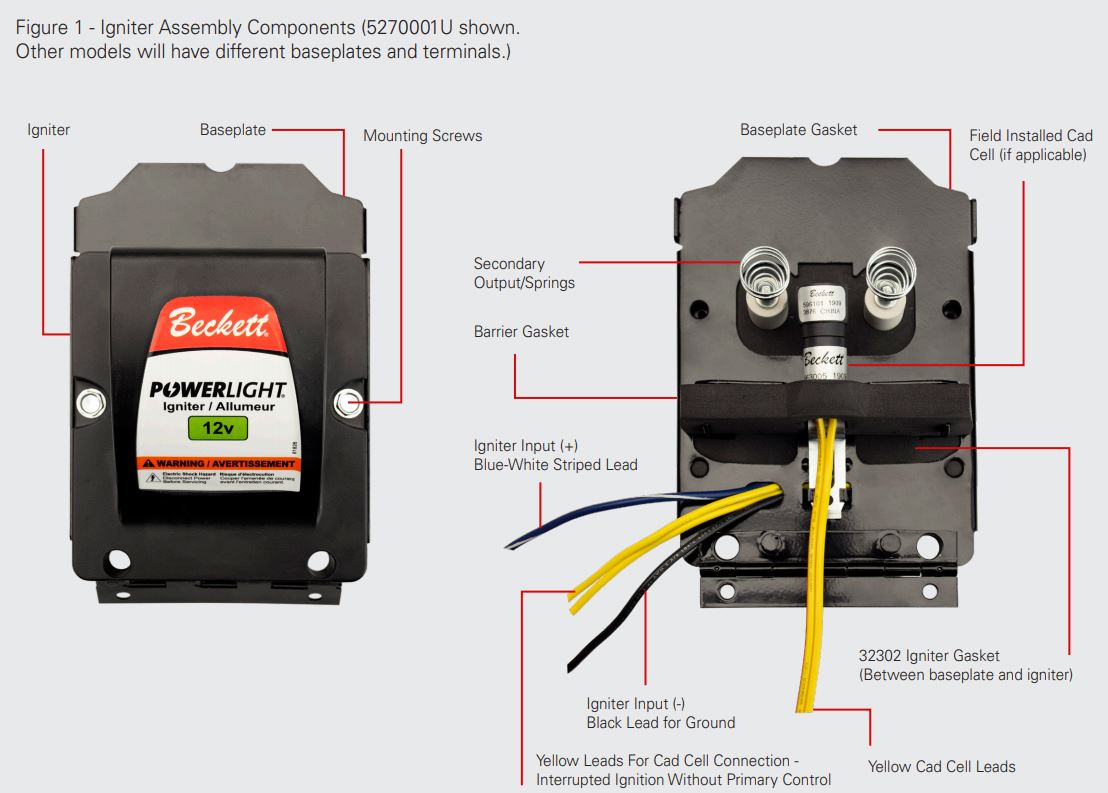

Beckett 5270001U ADC Powerlight 12 VDC Burner Igniter with cad cell (electronic eye). Beckett’s new PowerLight igniters offer improved performance and longer life. This igniter is easy to install and is designed as a universal replacement in Beckett and other manufacturer’s burners


Application Information:
• External heat sink eliminated for improved performance and reduced frequency of replacement due to overheating and arcing
• Easy change to interrupted ignition to increase igniter life and save energy
• Lightweight, single piece design is compatible with Beckett and other burners to reduce required inventory
• Fully potted with improved epoxy to withstand thermal shock and protect electronic components; waterproof
• Simplified wiring requirements and fewer wires for ease of installation

PRODUCT SHEET


Specifications:
• Input Voltage: 10.8 - 16 Vdc
• Output Voltage: 20kV peak
• Output Current: 25 mA
• RMS Input Current: 2.5 A Maximum
• Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
• Storage Temperature: -40°F (-40°C) to 150°F (66°C)
• Moisture: 5 to 95% Relative Humidity
• Replaces Beckett #’s 5218301U, 51776U & 51777U
• Weight: 2.05 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
