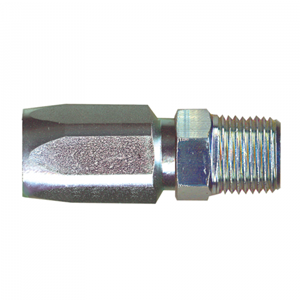

Fairview SR525-4B 1/4 ID x 1/4 MPT Steel Reusable Hose End for use with S.A.E. 100R5 (NON-SKIVE) hose
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Steel Reusable Hose Ends for use with S.A.E. 100R5 (NON-SKIVE) hose• Medium pressure service in the handling of most hydraulic fluids, gasoline, diesel fuels, lubricating oils and water• Working Temperature: -40°F to +250°F, -40°C to +121°C• Working Pressure: Are hose size dependent
