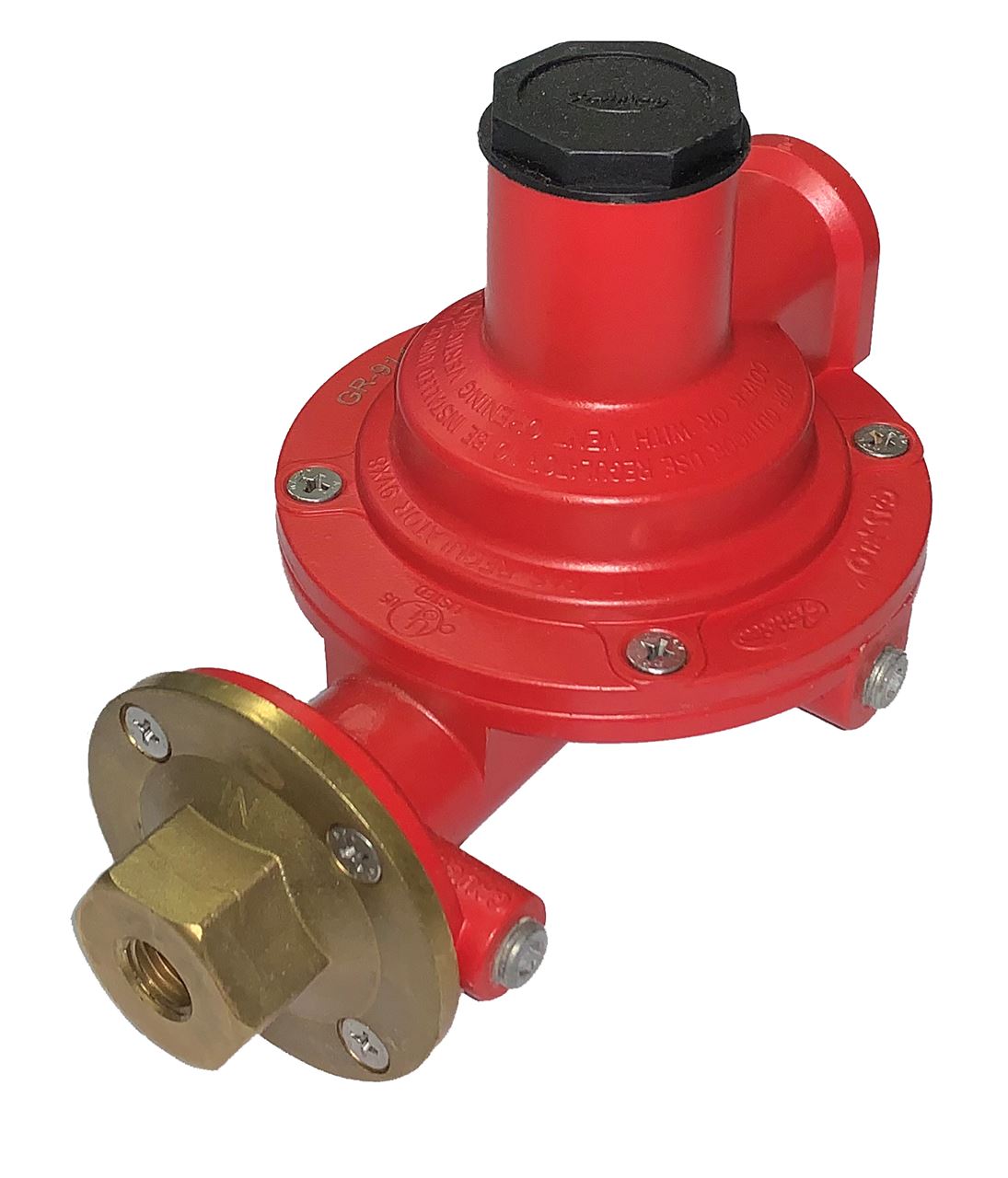

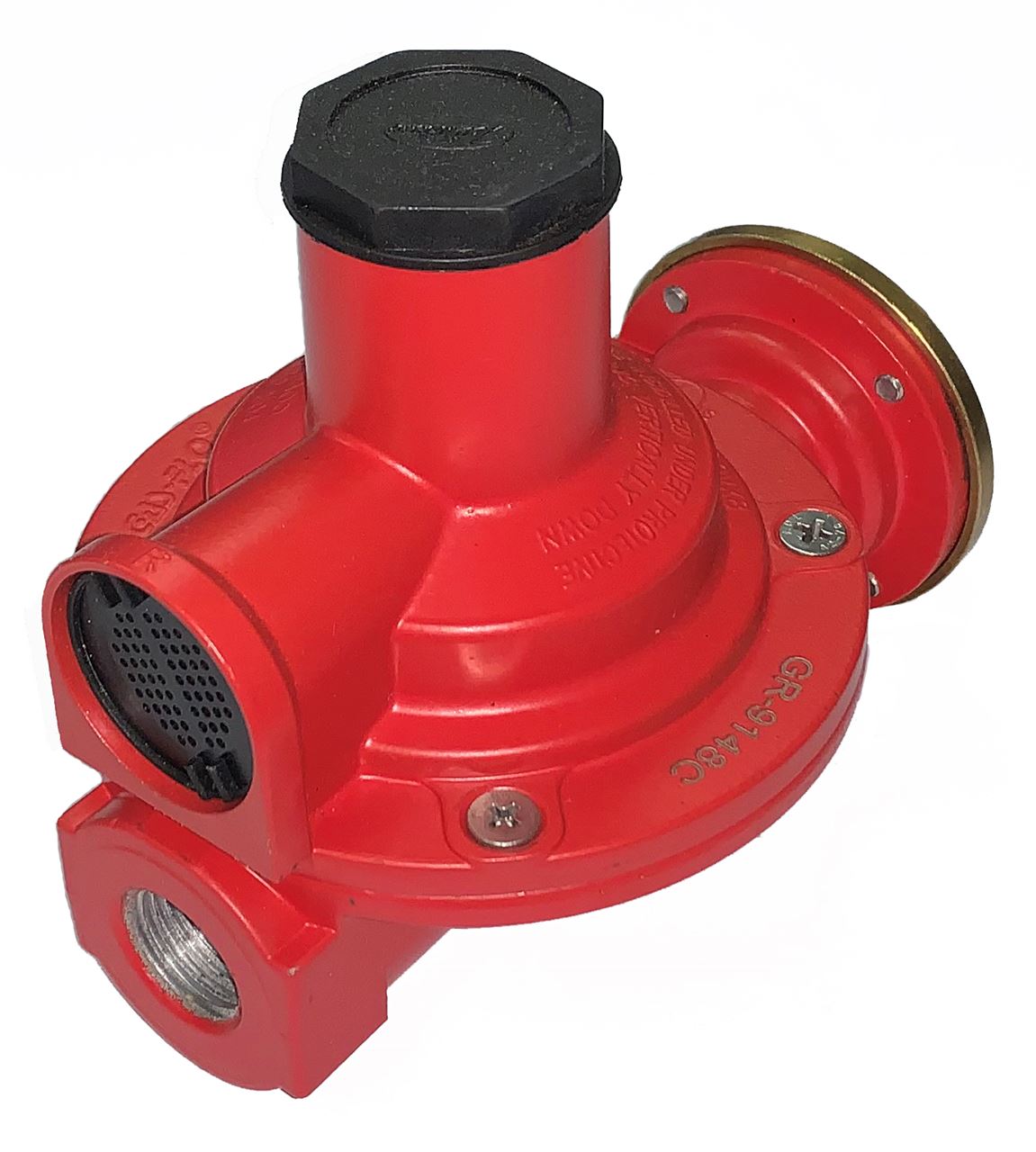

Fairview GAS-FLO® GR-9148C Compact High Pressure LP Gas First Stage Regulator 1/4 F NPT In x 1/2 F NPT Out 2,400,000 BTU/HR. Fairview's Compact High Pressure Lp Gas First Stage Regulators provide the highest gas flows available in a compact design

Features:
• Compact First-Stage regulators are designed for use as the first regulator of a Two-Stage regulation system
• Its’ compact design makes it the ideal choice for small domestic applications
• This large capacity adjustable First Stage regulator is factory set at 10 PSIG
• Equipped with integral relief valve and built-in 1/8" FNPT gauge tap
• UL Listed

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlet: 1/4 F NPT
• Outlet: 1/2 F NPT
• Delivery Pressure: 10 PSI
• Inlet Pressure: 250 PSI
• Bonnet Vent: Over outlet
• Capacity BTU/Hr Propane: 2,400,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.85 lbs
