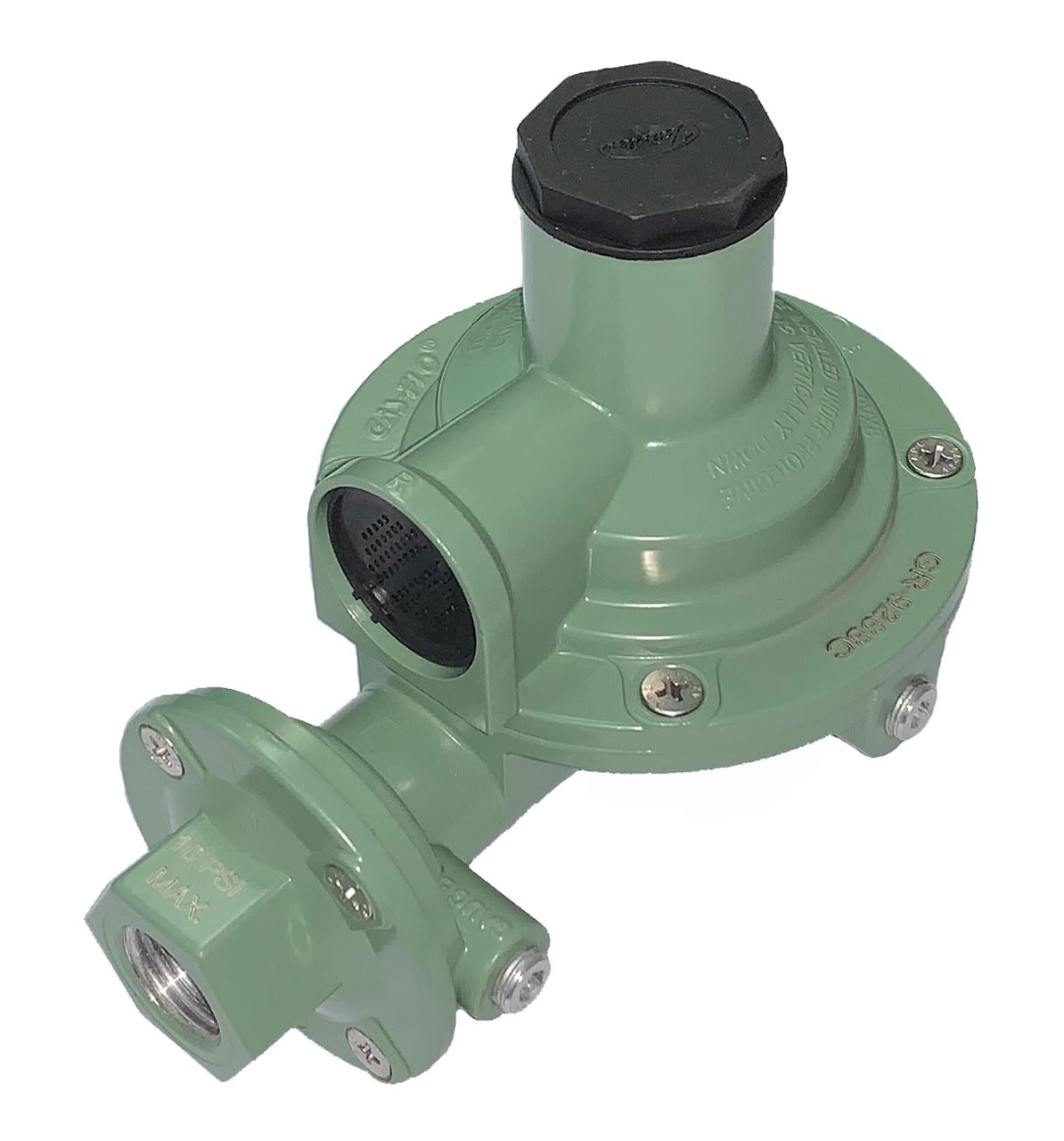

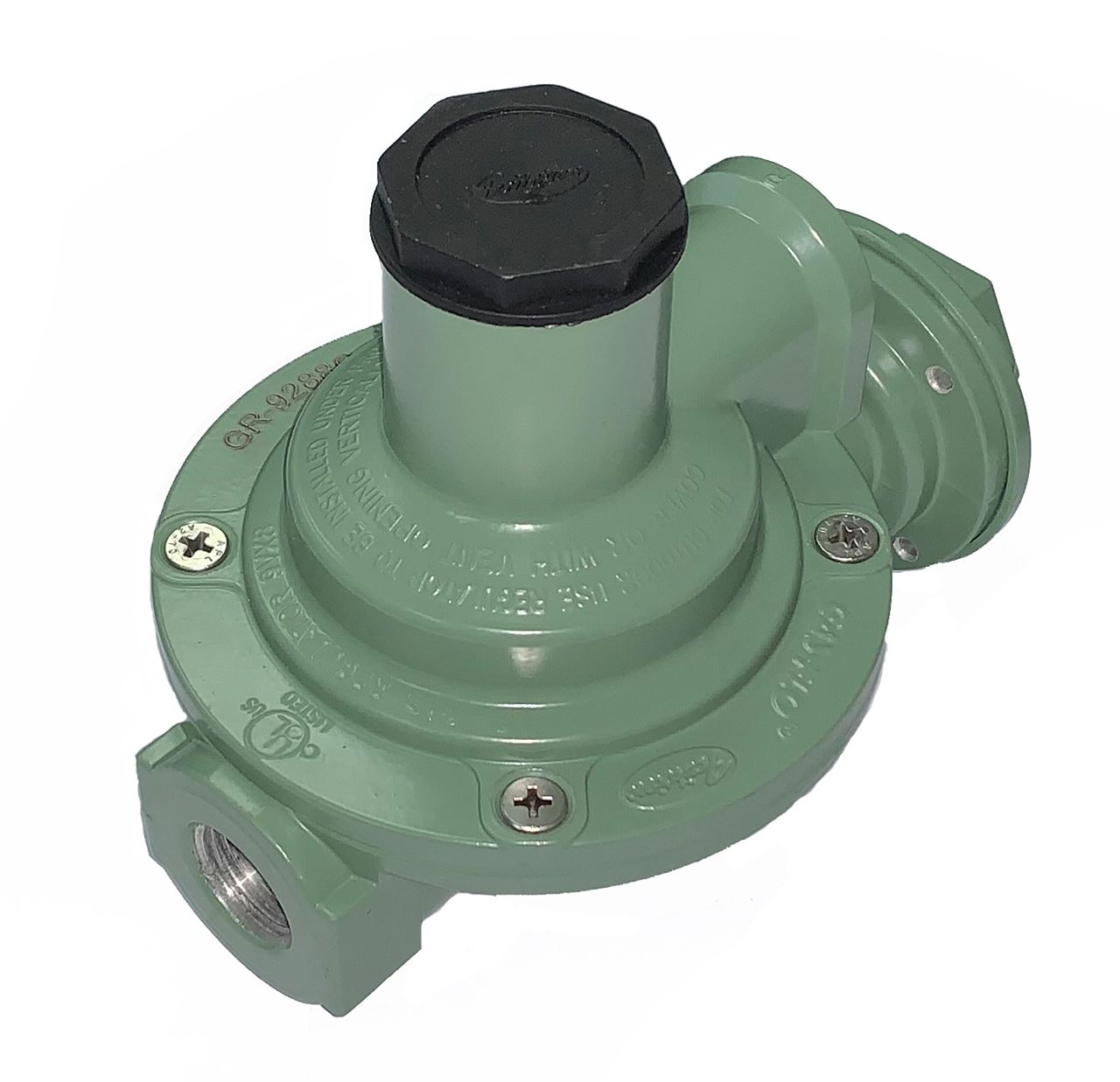

Picture of Gas-Flo Compact Low Pressure LP Gas Second Stage Regulator 1/2 F NPT x 1/2 F NPT

Gas-Flo Compact Low Pressure LP Gas Second Stage Regulator 1/2 F NPT x 1/2 F NPT

SKU: GR-9288C

Brand: Fairview USA Inc.

3 in stock
Reg. $45.09

$34.34

Save: $10.75
QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Fairview GAS-FLO® GR-9288C Compact Low Pressure LP Gas Second Stage Regulator 1/2 F NPT In x 1/2 F NPT Out 1,200,000 BTU/HR. Fairview's Compact Low Pressure Lp Gas Second Stage Regulators provide the highest gas flows available in a compact design

Features:
• Second Stage regulators are designed to reduce the pressure from a First-Stage regulator
• Its’ compact design makes it the ideal choice for small domestic applications
• These adjustable regulators are factory set at 11" w.c. with first stage inlet pressure of 10 psig
• Equipped with integral relief valve and built-in 1/8" FNPT gauge tap
• UL Listed

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlet: 1/2 F NPT
• Outlet: 1/2 F NPT
• Delivery Pressure: 11" W.C. @ 10 PSI
• Vent Position: Over Inlet
• Capacity BTU/Hr Propane: 1,200,000
• Mount: Standard
TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.60 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
