General / PA YG4500S Linear Rear Entry Trigger Gun.

Features:
• Shockproof plastic housing
• Ergonomic design, Minimizes fatigue for the operator
• Stainless Steel seat and ball
• Internal construction of brass and Stainless Steel

Specifications:
• Max Pressure: 5,000 PSI
• Max Flow: 10.5 GPM
• Max Temp: 320° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Weight: 1.2 lbs

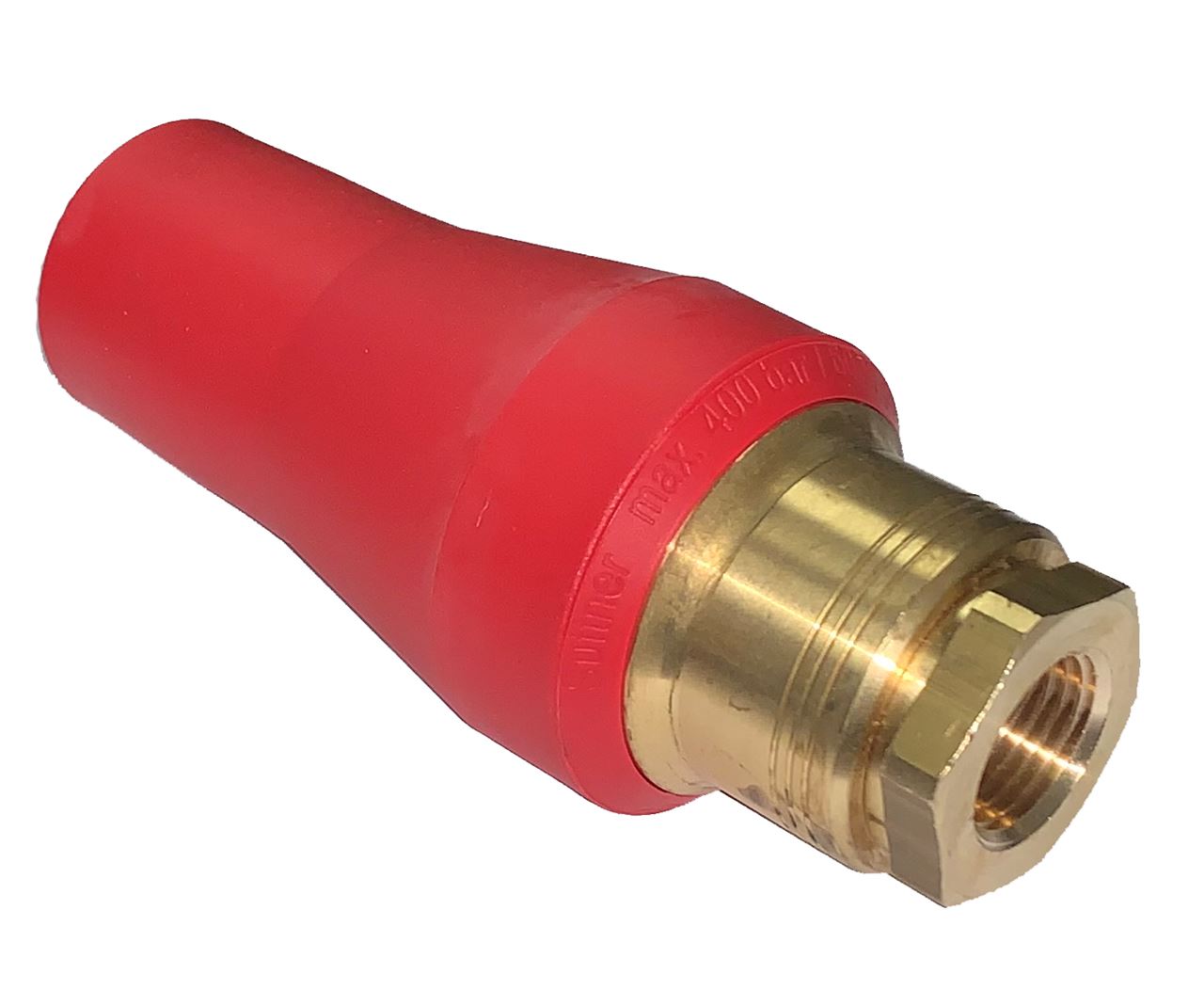

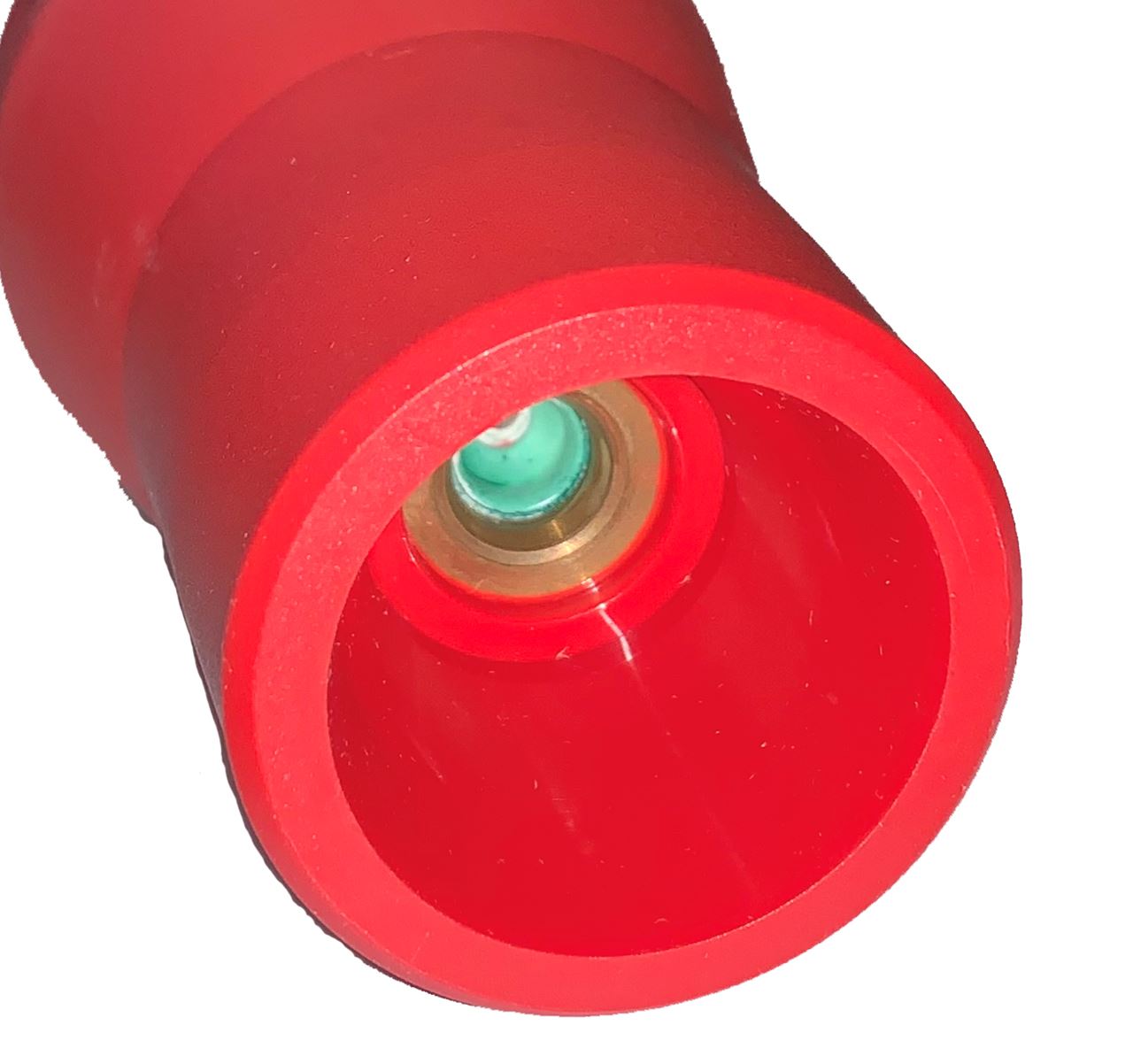

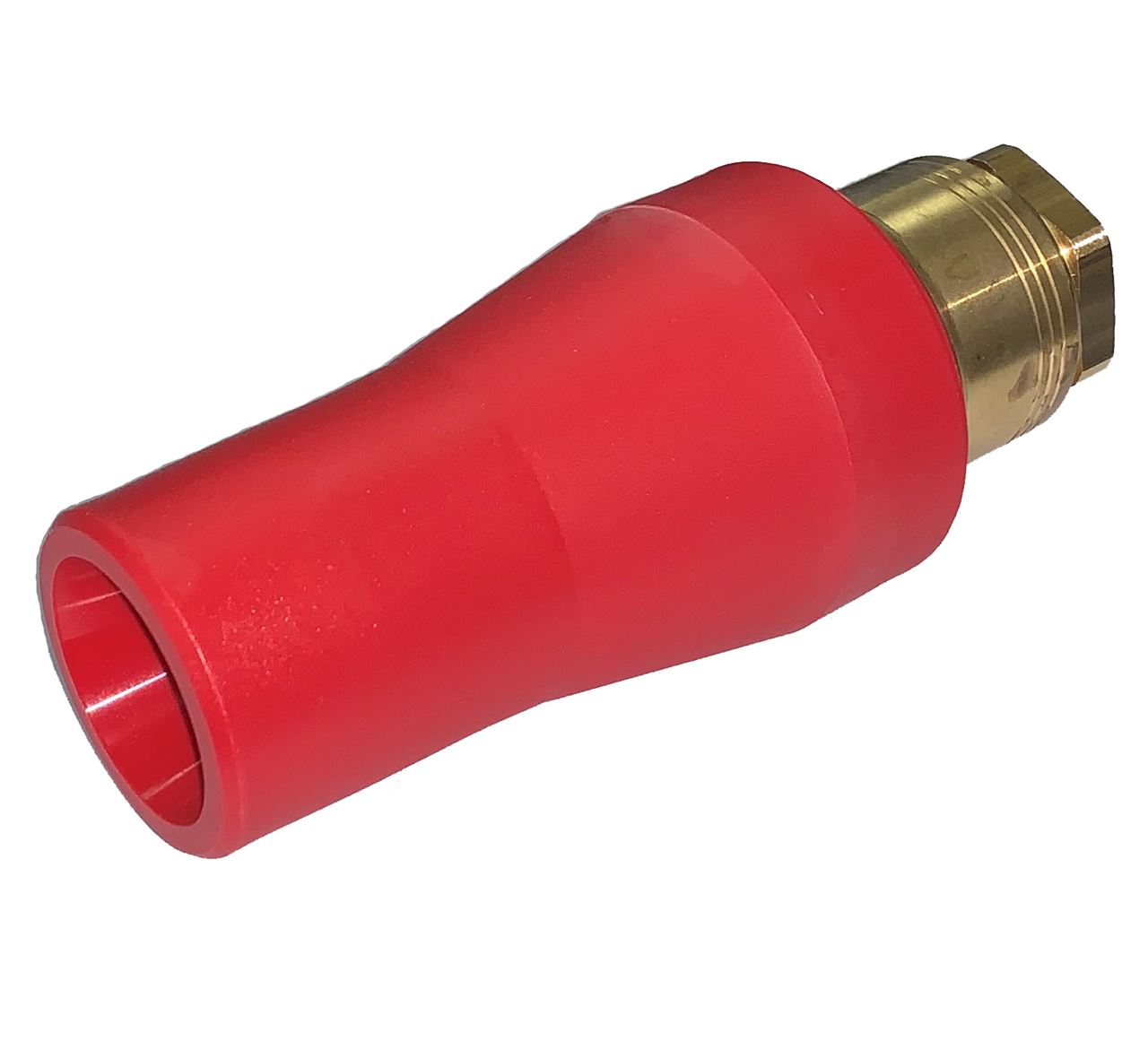

Suttner ST-458 # 3.0 Hydro Ex Turbo Nozzle with Red Extended Poly Cover. This 1/2” Inlet hydro excavation nozzle is rated up to 6,000 PSI.

Features
• The outlet cover extension greatly decreases the chance of dirt and debris getting to the nozzle tip and seat area
• Significant Increase in lifetime of nozzle
• Molded and wear resistant poly cover

Hydro Ex Nozzle Flyer

Specifications
• Nozzle Size # 3.0
• Max PSI: 6,000
• Max Temp.: 190° F
• Inlet: 1/2" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 1.60 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner Hydro Excavation Lance 1/2” Schedule 40 Plated Steel MxM 48” 4,000 PSI

Specifications:
• Length: 48"
• Pipe Material: Schedule 40 plated steel
• Inlet: 1/2” Male NPT
• Outlet: 1/2” Male NPT
• Max Temp: 300° F.
• Maximum Pressure: 4,000 PSI
• Weight: 4.0 Lbs

Features
• High Quality, German engineered components
• Forged stainless steel housing, piston, and malleable seat
• Special heat and chemical resistant seals

Specifications
• Max Pressure: 8,700 PSI
• Max Flow: 21.0 GPM
• Max Temp: 300° F.
• Inlet: 1/2" Female NPT
• Outlet: 1/2" Female NPT
• Weight: 2.58 lb
