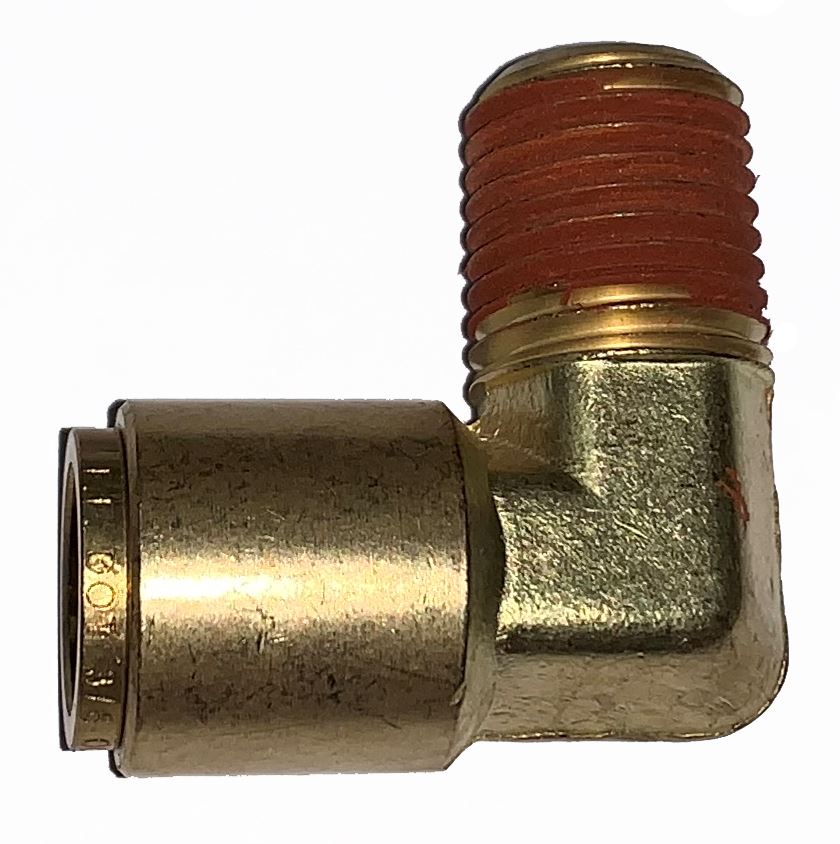

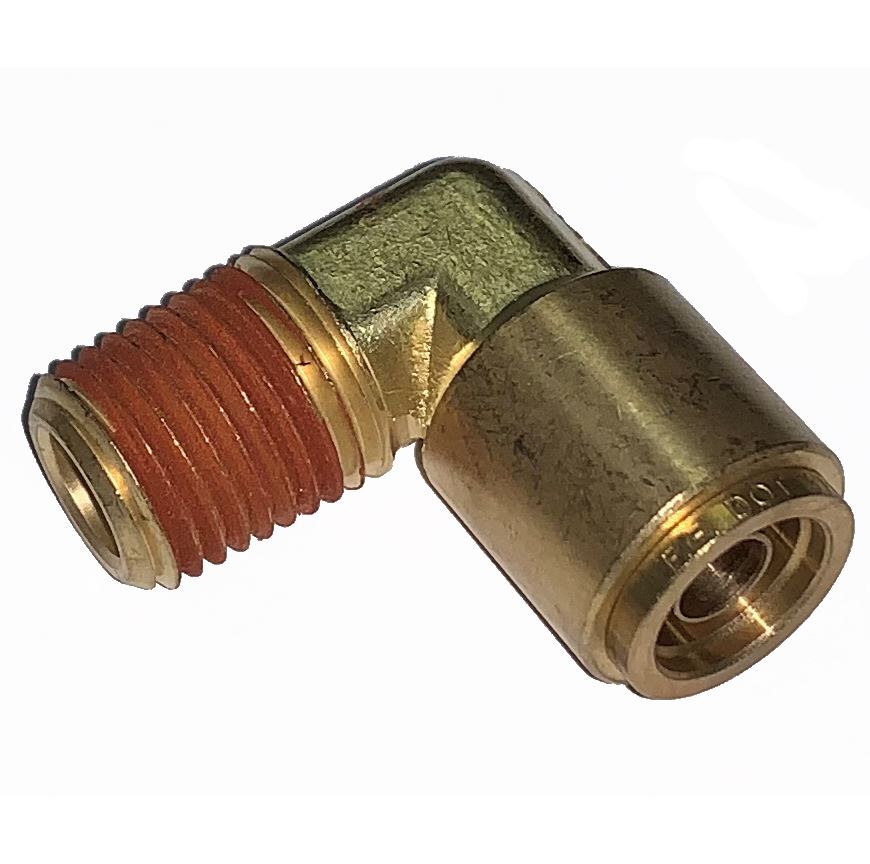

Fairview PC1469-6C 3/8 Tube OD x 3/8 MPT Brass D.O.T. Push-To-Connect 90° Male Elbow Air Brake Fitting. Fairview's 90° Male Pipe Elbows Feature A Labor Saving Full Flow Design That Requires No Tools
Applications:• Air brake systems. Used with copper tubing for rigid plumbing along frame and air tank• Use with J844D Nylon Air Brake Tube• D.O.T. RECOGNIZED FOR ALL AIR BRAKE APPLICATIONS EXCEPT THOSE FOR USE BETWEEN FRAME AND AXLE OR BETWEEN TOWED AND TOWING VEHICLES
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: 90° Male Elbow• Tube OD: 3/8"• Pipe Thread: 3/8" MPT• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.11 lbs
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
