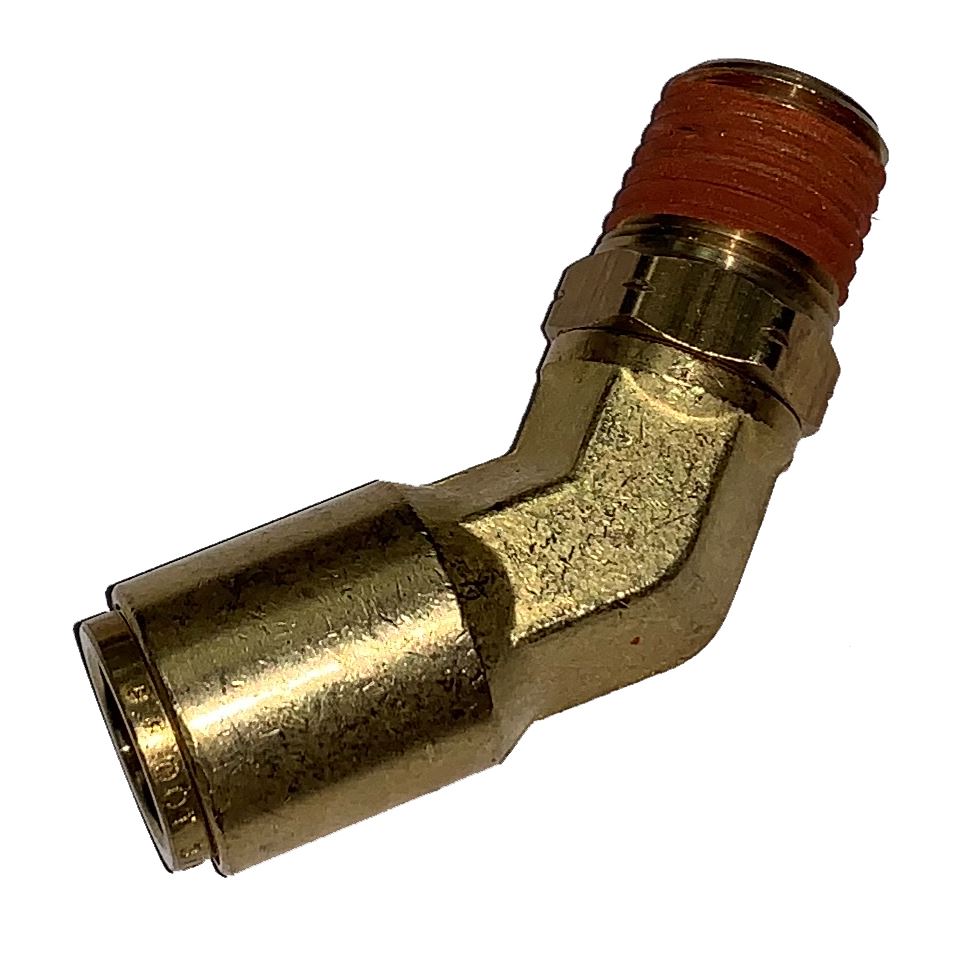

Fairview PC1474SW-10D 5/8 Tube OD x 1/2 MPT Brass D.O.T. Push-To-Connect 45° Male Swivel Elbow Air Brake Fitting. Fairview's 45° Male Pipe Swivel Elbows Feature A Labor Saving Full Flow Design That Requires No Tools

Applications:
• Air brake systems. Used with copper tubing for rigid plumbing along frame and air tank
• Use with J844D Nylon Air Brake Tube
• D.O.T. RECOGNIZED FOR ALL AIR BRAKE APPLICATIONS EXCEPT THOSE FOR USE BETWEEN FRAME AND AXLE OR BETWEEN TOWED AND TOWING VEHICLES

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Fitting Type: Push-To-Connect
• Fitting Style: 45° Male Swivel Elbow
• Tube OD: 5/8"
• Pipe Thread: 1/2" MPT
• Material: Brass
• Working Temperature: -40°F (-40°C) to 225°F (107°C)
• Weight 0.24 lbs
