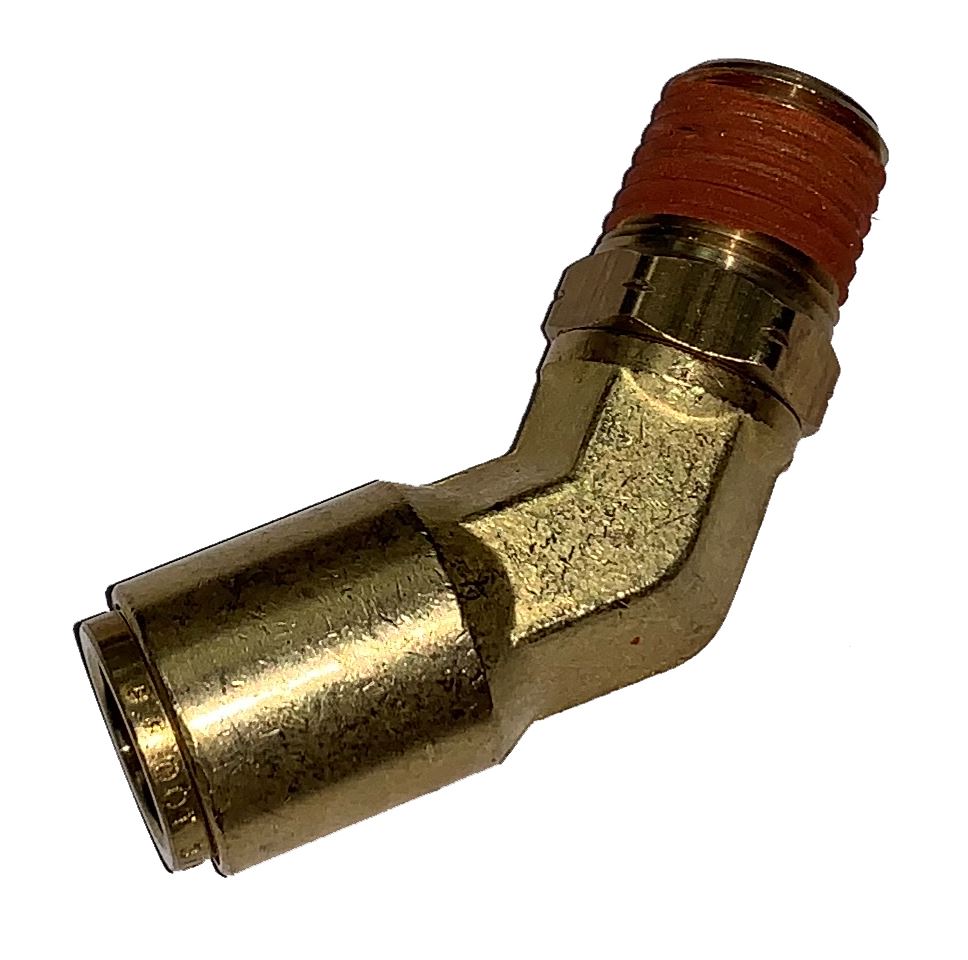

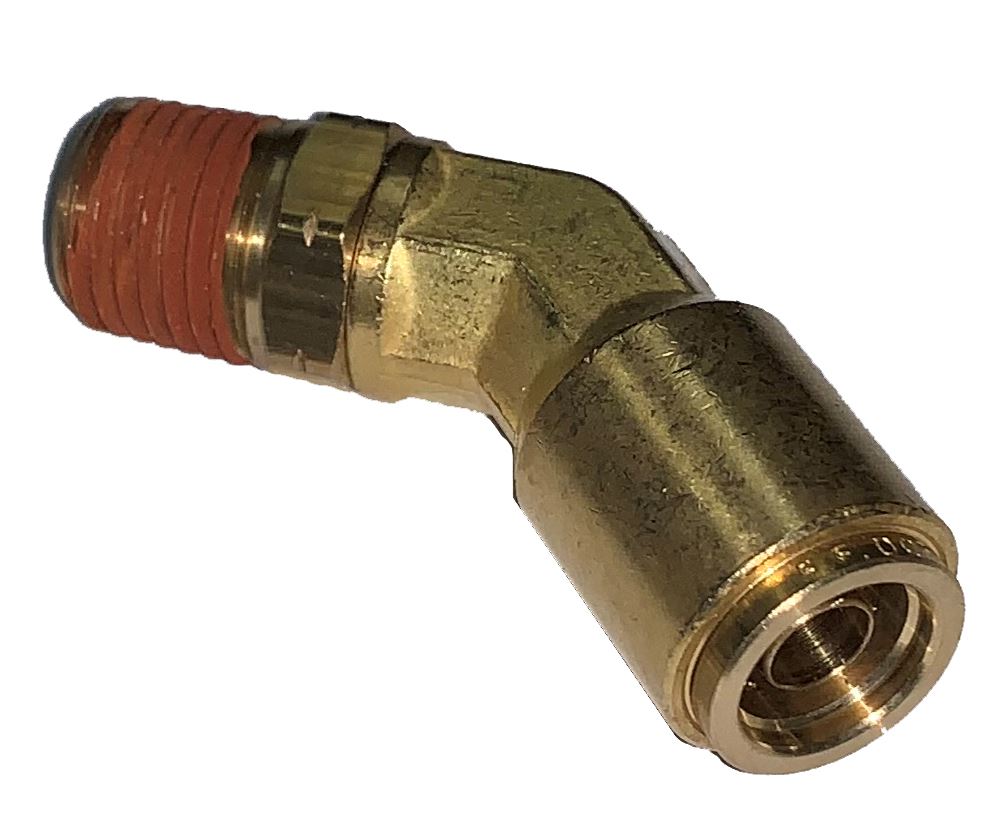

Fairview PC1474SW-8C 1/2 Tube OD x 3/8 MPT Brass D.O.T. Push-To-Connect 45° Male Swivel Elbow Air Brake Fitting. Fairview's 45° Male Pipe Swivel Elbows Feature A Labor Saving Full Flow Design That Requires No Tools
Applications:• Air brake systems. Used with copper tubing for rigid plumbing along frame and air tank• Use with J844D Nylon Air Brake Tube• D.O.T. RECOGNIZED FOR ALL AIR BRAKE APPLICATIONS EXCEPT THOSE FOR USE BETWEEN FRAME AND AXLE OR BETWEEN TOWED AND TOWING VEHICLES
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Fitting Type: Push-To-Connect• Fitting Style: 45° Male Swivel Elbow• Tube OD: 1/2"• Pipe Thread: 3/8" MPT• Material: Brass• Working Temperature: -40°F (-40°C) to 225°F (107°C)• Weight 0.16 lbs
