Picture of 1/4 Tube x 1/8 MPT DOT Push-To-Connect Male NPT Connector Air Brake Fitting

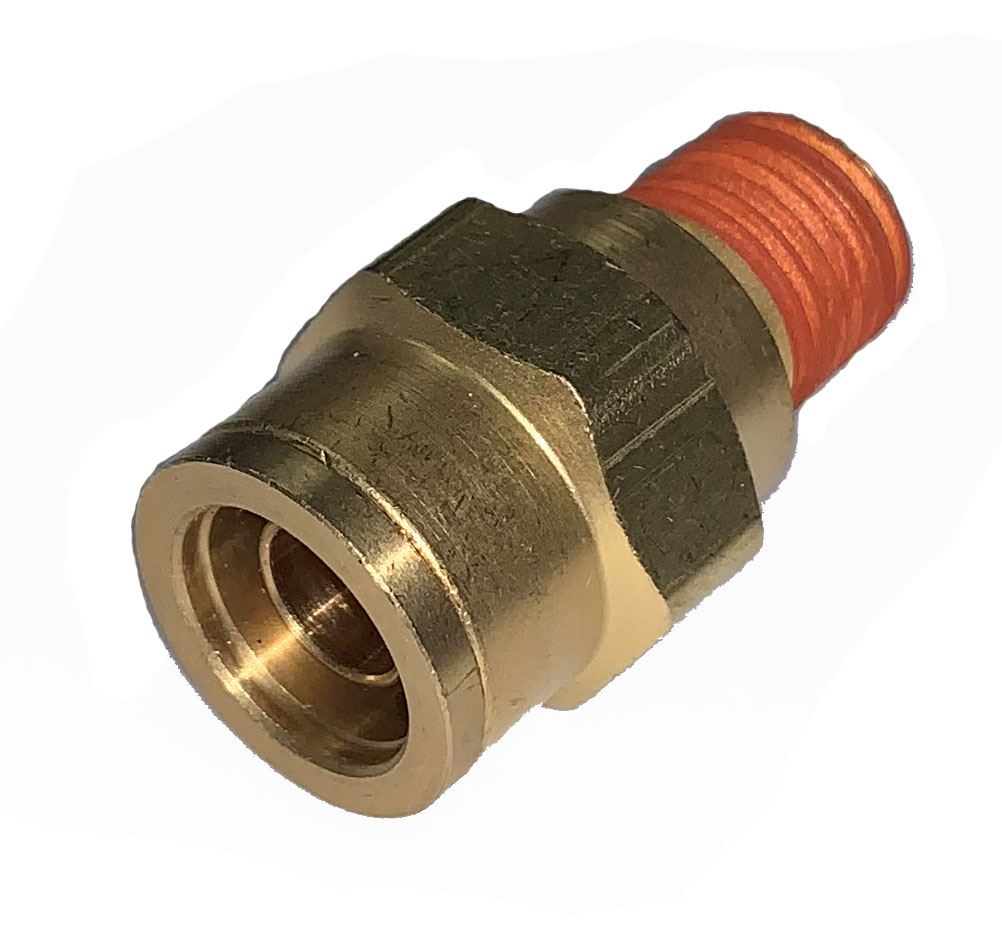

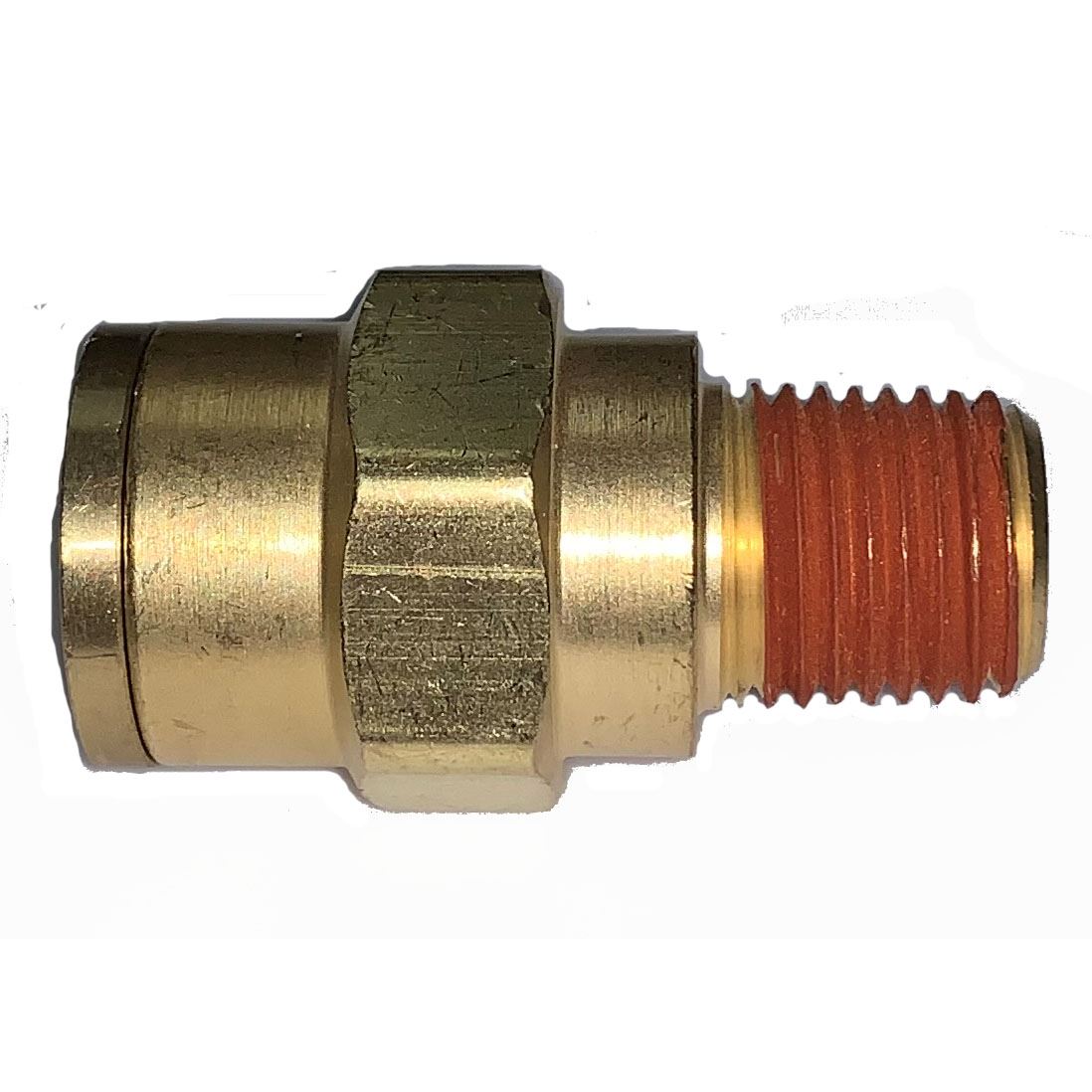

1/4 Tube x 1/8 MPT DOT Push-To-Connect Male NPT Connector Air Brake Fitting

SKU: PC1468-4A

Brand: Fairview USA Inc.

$2.94

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Fairview PC1468-4A 1/4 Tube OD x 1/8 MPT Brass D.O.T. Push-To-Connect Male NPT Connector Air Brake Fitting. Fairview's Male Pipe Connectors Feature A Labor Saving Full Flow Design That Requires No Tools

Applications:
• Air brake systems. Used with copper tubing for rigid plumbing along frame and air tank
• Use with J844D Nylon Air Brake Tube
• D.O.T. RECOGNIZED FOR ALL AIR BRAKE APPLICATIONS EXCEPT THOSE FOR USE BETWEEN FRAME AND AXLE OR BETWEEN TOWED AND TOWING VEHICLES

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Fitting Type: Push-To-Connect
• Fitting Style: Male NPT Connector
• Tube OD: 1/4"
• Pipe Thread: 1/8" MPT
• Material: Brass
• Working Temperature: -40°F (-40°C) to 225°F (107°C)
• Weight 0.02 lbs
